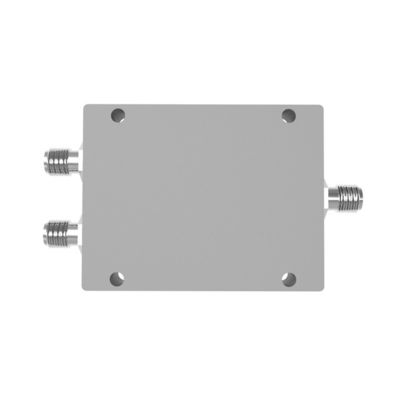

500-6000MHz 2Way SMA Female Wilkinson Power Divider for Public Safety System

Name: 500-6000MHz 2Way SMA Female Wilkinson Power Divider for Public Safety System
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-0560-SMA2
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-PD-0560-SMA2

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          2Way SMA Female Wilkinson Power Divider, Public Safety System Wilkinson Power Divider, 500-6000MHz Wilkinson Power Divider


Interface:	SMA Female	Frequency Range:	500-6000
VSWR:	≤1.25	Impedance:	50
Split Loss:	≤4.4	Application:	Indoor
ROHS:	Compliance

Interface:	SMA Female
Frequency Range:	500-6000
VSWR:	≤1.25
Impedance:	50
Split Loss:	≤4.4
Application:	Indoor
ROHS:	Compliance

Description

500-6000MHz 2Way SMA Female Wilkinson Power Divider for Public Safety System

500-6000MHz 2Way SMA Female Wilkinson Power Divider

Good VSWR at all ports
High isolation
Low split loss

VN-PD-0560-SMA2.pdf

Part Number	VN-PD-0560-SMA2
Operating Frequency ( MHz )	500-6000
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss (dB)	≤4.4
Isolation(dB)	≥19
Application	Indoor
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	SMA Female
Handling Power (Watt, max)	30
Dimension (mm)(L×W×H, excl connector)	50.4×39×12
ROHS Compliance	Yes
