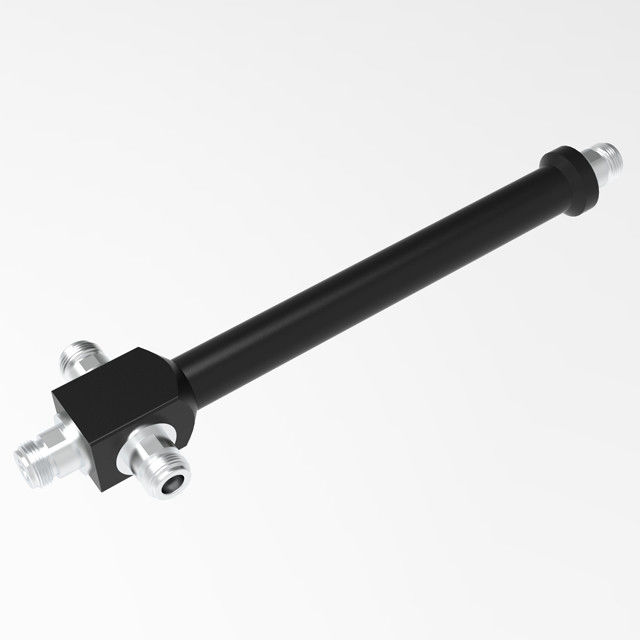

Indoor 350-520MHz 3 Way N Female Power Splitter
  • name
  • name
  • name

Indoor 350-520MHz 3 Way N Female Power Splitter

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-PS-035052-IN3-R
Interface:
N Female
Frequency Range:
350-520
VSWR:
≤1.18
Impedance:
50
Split Loss:
≤5.1
Application:
Indoor
ROHS:
Compliance
Highlight:

350-520MHz Power Splitter

,

3 Way Power Splitter

,

N Female Power Splitter

Product Description

350-520MHz 3 Way N Female Power Splitter



  • High power handling splitters
  • Low PIM up to -163dBc@43dBm*2
  • Low split loss



                        VN-PS-035052-ON3-R-xxx.pdf

Part Number VN-PS-035052-IN3-R
Operating Frequency ( MHz ) 350-520
Impedance ( Ohm ) 50
VSWR ≤1.18
Split Loss (dB) ≤5.1
IM3 (dBc @ 2×43dBm) -150 / -155/ -160/-163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 200 × 25 × 25
Net Weight (g) 170± 20
Packing Dimensions (mm,L×W×H) 240 × 80 × 35
Packing Carton Size (mm,L×W×H) 500 × 420 × 160
ROHS Compliance Yes



                                                                                                                                                        Indoor 350-520MHz 3 Way N Female Power Splitter 0Indoor 350-520MHz 3 Way N Female Power Splitter 1
