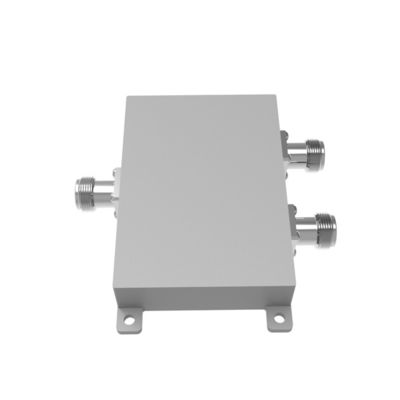

350-520MHz 2 Way N Female Wilkinson Power Divider

Name: 350-520MHz 2 Way N Female Wilkinson Power Divider
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PD-035052-ON2
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-PD-035052-ON2

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2 Way Wilkinson Power Divider, 350-520MHz Wilkinson Power Divider


Interface:	N Female	Frequency Range:	350-520
VSWR:	≤1.20	Impedance:	50
Split Loss:	≤3.3	Application:	Indoor
ROHS:	Compliance	Isolation:	≥22

Interface:	N Female
Frequency Range:	350-520
VSWR:	≤1.20
Impedance:	50
Split Loss:	≤3.3
Application:	Indoor
ROHS:	Compliance
Isolation:	≥22

Description

350-520MHz 2 Way N Female Wilkinson Power Divider

350-520MHz 2 Way N Female Wilkinson Power Divider

High power handling splitters
Good VSWR at all ports
Low split loss

VN-PD-035052-ON2.pdf

Part Number	VN-PD-035052-ON2
Operating Frequency ( MHz )	350-520
Impedance ( Ohm )	50
VSWR	≤1.20
Split Loss (dB)	≤3.3
Isolation (dB)	≥22
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Average Power (Watt, max)	50(Power dividers) / 2(combiner)
Peak Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	70×99.36×21
Net Weight (g)	340±5%
ROHS Compliance	Yes
