70-80MHz NF 2 Way 3dB Coupler / Splitter for Signal Splitting
  • name
  • name
  • name

70-80MHz NF 2 Way 3dB Coupler / Splitter for Signal Splitting

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-PS-7080-ON2-S
Connector Type:
N Female
Frequency Range:
70-80MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.3
Highlight:

80MHz NF 2 Way Coupler

,

NF 2 Way 3dB Coupler

,

3dB NF 2 Way Coupler

Product Description

70-80MHz NF 2 Way 3dB Coupler /Splitter



  • Low PIM
  • High isolation
  • Good VSWR



          VN-PS-07080-ON2-S.pdf

Part Number VN-PS-7080-ON2-S
Operating Frequency ( MHz ) 70-80
Impedance ( Ohm ) 50
VSWR ≤1.30
Split Loss (dB) ≤3.3
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    326 × 25 × 25
Net Weight (g) 625 ± 20 Appromix
Packing Dimensions (mm,L×W×H) 350 × 60 × 35
Packing Carton Size (mm,L×W×H) 500 × 420 × 160
ROHS Compliance Yes

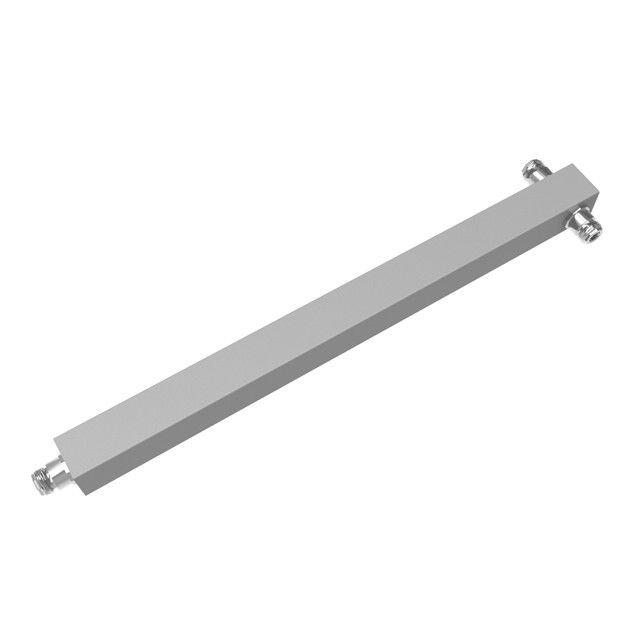

70-80MHz NF 2 Way 3dB Coupler / Splitter for Signal Splitting 0



70-80MHz NF 2 Way 3dB Coupler / Splitter for Signal Splitting 1



Tags:

power passing splitter,

power pass splitter,

rf aerial splitter
