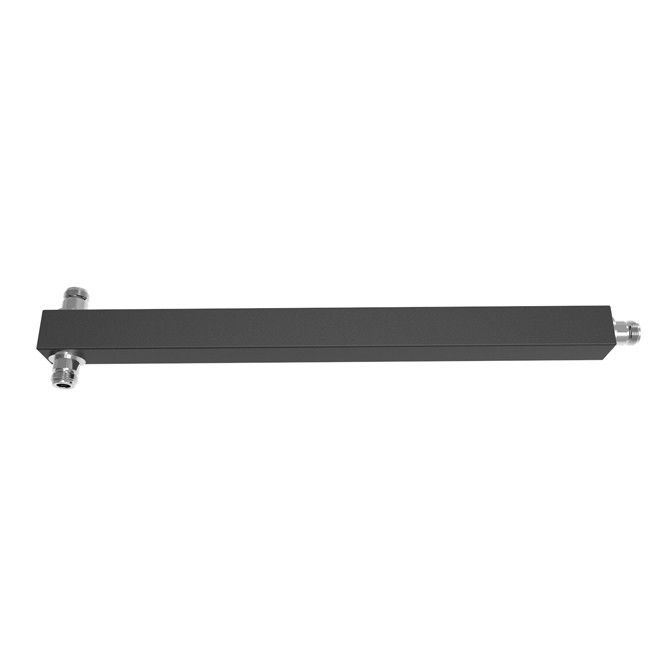

130-180MHz NF 2 Way 3dB Coupler / Splitter Good Flatness
  • name
  • name
  • name

130-180MHz NF 2 Way 3dB Coupler / Splitter Good Flatness

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-PS-013018-ON2-S
Interface:
N Female
Frequency Range:
130-180
VSWR:
≤1.25
Impedance:
50
Split Loss:
≤3.5
Application:
Indoor
ROHS:
Compliance
Highlight:

130-180MHz 3dB Coupler /Splitter

,

3dB Coupler Splitter

Product Description

130-180MHz NF 2 Way 3dB Coupler /Splitter



  • Less Insertion Loss
  • Good VSWR at all ports
  • Good Flatness



                       VN-PS-013018-ON2-S.pdf

Part Number VN-PS-013018-ON2-S
Operating Frequency ( MHz ) 130-180
Impedance ( Ohm ) 50
VSWR ≤1.25
Split Loss /Coupling (dB) ≤3.5
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 330.1 × 25 × 25
ROHS Compliance Yes



130-180MHz NF 2 Way 3dB Coupler / Splitter Good Flatness 0130-180MHz NF 2 Way 3dB Coupler / Splitter Good Flatness 1
