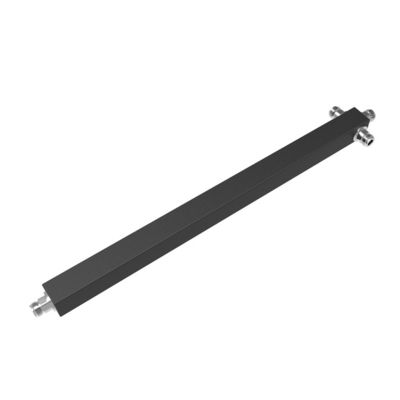

Outdoor 130-180MHz NF 3 Way 5dB Coupler / Splitter

Name: Outdoor 130-180MHz NF 3 Way 5dB Coupler / Splitter
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PS-013018-ON3-S
Price: 414.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-PS-013018-ON3-S

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          3 Way NF Coupler / Splitter, 180MHz NF Coupler Splitter


Interface:	N Female	Frequency Range:	130-180
VSWR:	≤1.30	Impedance:	50
Split Loss:	≤5.5	Application:	Indoor
ROHS:	Compliance

Interface:	N Female
Frequency Range:	130-180
VSWR:	≤1.30
Impedance:	50
Split Loss:	≤5.5
Application:	Indoor
ROHS:	Compliance

Description

Outdoor 130-180MHz NF 3 Way 5dB Coupler / Splitter

130-180MHz NF 3 Way 5dB Coupler /Splitter

Less Insertion Loss
Good VSWR at all ports
High power handling splitters

VN-PS-013018-ON3-S.pdf

Part Number	VN-PS-013018-ON3-S
Operating Frequency ( MHz )	130-180
Impedance ( Ohm )	50
VSWR	≤1.30
Split Loss (dB)+Insertion Loss	≤5.5
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	379 × 25 × 25
ROHS Compliance	Yes
