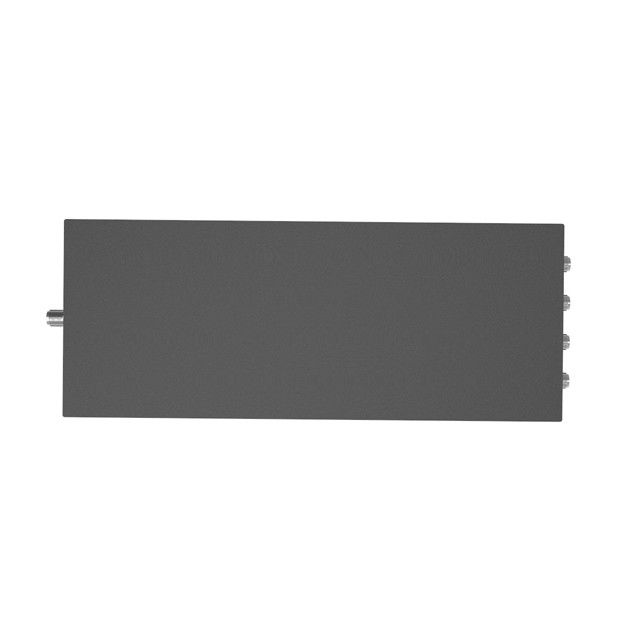

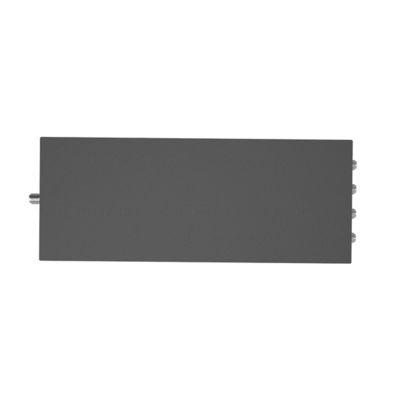

110-1000MHz 1IN 12OUT POI for Stable and Consistent Signal Distribution
110-1000MHz 1IN 12OUT POI for Stable and Consistent Signal Distribution
110-1000MHz 1IN 12OUT POI for Stable and Consistent Signal Distribution
110-1000MHz 1IN 12OUT POI for Stable and Consistent Signal Distribution
110-1000MHz 1IN 12OUT POI for Stable and Consistent Signal Distribution

110-1000MHz 1IN 12OUT POI for Stable and Consistent Signal Distribution

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-POI-1IN12OUT-0.1-1G-INF

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

12OUT POI

,

110-1000MHz POI

,

1IN 12OUT POI

Connector Type:
N Female
Frequency Range:
110-1000MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.35
Connector Type:
N Female
Frequency Range:
110-1000MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.35
Description
110-1000MHz 1IN 12OUT POI for Stable and Consistent Signal Distribution

110-1000MHz 1IN 12OUT POI



  • Good VSWR
  • High isolation
  • Less Insertion Loss



          VN-POI-1IN12OUT-0.1-1G-INF.pdf

Part Number VN-POI-1IN12OUT-0.1-1G-INF
Operating Frequency ( MHz ) 110-1000
Impedance ( Ohm ) 50
VSWR ≤1.35
Insertion Loss (dB) ≤14
Isolation (dB) ≥16
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt) 50
Reversing Power Handling (Watt) 2
    Dimension (mm)(L×W×H, excl connector)     253*350*120
ROHS Compliance Yes






110-1000MHz 1IN 12OUT POI for Stable and Consistent Signal Distribution 0
