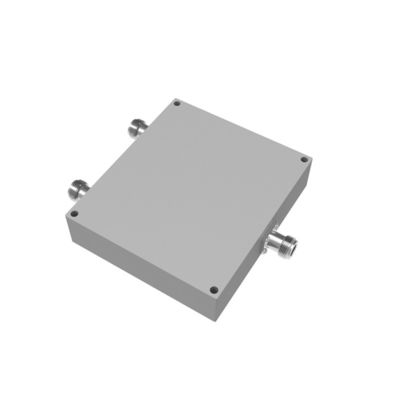

100-1000MHz 2Way N Female Wilkinson Splitter
  • name
  • name
  • name

100-1000MHz 2Way N Female Wilkinson Splitter

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-PD-0110-ON2
Connector Type:
N Female
Frequency Range:
100-1000MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.25
Highlight:

1000MHz Wilkinson Splitter

,

2 Way Wilkinson Splitter

,

100MHz Wilkinson Splitter

Product Description

100-1000MHz 2Way N Female Wilkinson Splitter



  • Good Flatness
  • High isolation
  • Good VSWR at all ports



          VN-PD-0110-ON2.pdf

Part Number VN-PD-0110-ON2
Operating Frequency ( MHz ) 100-1000
Impedance ( Ohm ) 50
VSWR ≤1.25
Isolation(dB) 20
Split Loss (dB) ≤3.6
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 50
Peak Power (Watt, max) 200
    Dimension (mm)(L×W×H, excl connector)     120×113×21
Net Weight (g) 190±5%
ROHS Compliance Yes








100-1000MHz 2Way N Female Wilkinson Splitter 0



Tags:

power passing splitter,

power pass splitter,

rf aerial splitter
