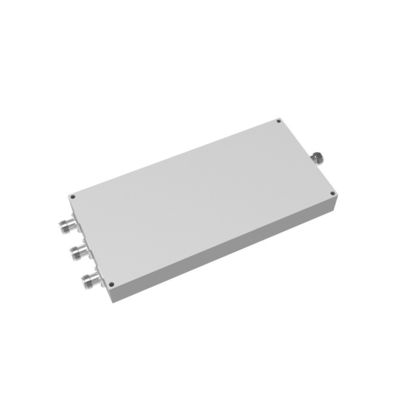

110-1000MHz 3Way N Female Wilkinson Splitter
  • name
  • name
  • name

110-1000MHz 3Way N Female Wilkinson Splitter

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-PD-0110-ON3
Connector Type:
N Female
Frequency Range:
110-1000MHz
Operating Temperature:
-40°C~+80°C
VSWR:
≤1.3
Highlight:

110-1000MHz Wilkinson Splitter

,

3 Way Wilkinson Splitter

,

N Female Wilkinson Splitter

Product Description

110-1000MHz 3Way N Female Wilkinson Splitter



  • Good Flatness
  • High isolation
  • Good VSWR



          VN-PD-0110-ON3.pdf

Part Number VN-PD-0110-ON3
Operating Frequency ( MHz ) 110-1000
Impedance ( Ohm ) 50
VSWR ≤1.30
Isolation(dB) 20
Split Loss (dB) ≤5.8
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 50
Peak Power (Watt, max) 200
    Dimension (mm)(L×W×H, excl connector)     125×261×21






110-1000MHz 3Way N Female Wilkinson Splitter 0
