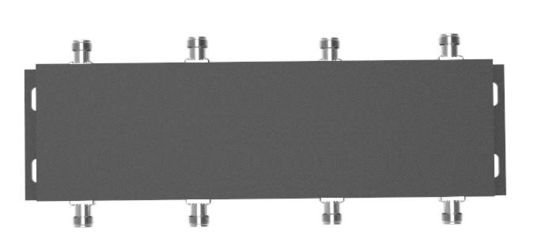

380-470MHz Hybrid Coupler / 4/4 Combiner N Female Connector
  • name

380-470MHz Hybrid Coupler / 4/4 Combiner N Female Connector

MOQ: 5pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 60pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC4x4-0305-ON
Frequency:
380-470
Connector:
N Female
ROHS:
Compliance
VSWR:
1.3
Highlight:

N Female Connector Hybrid Coupler

,

470MHz Hybrid Coupler

Product Description

380-470MHz Hybrid Coupler / 4:4 Combiner



  • Good VSWR at all ports
  • High isolation
  • ROHS Compliance

                                                                                                                                       ​VN-HC4x4-0305-300W-ON.pdf
Part Number VN-HC4x4-0305-ON
Operating Frequency ( MHz ) 380-470
Impedance ( Ohm ) 50
VSWR ≤1.3
Coupling (dB) 6.1
Insertion Loss (dB) +/-1.2
Isolation (dB) 22
Application Indoor & Outdoor
Degree of Protection IP67
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
    Dimension (mm)(L×W×H, excl connector)     348X95X55
ROHS Compliance Yes


380-470MHz Hybrid Coupler / 4/4 Combiner N Female Connector 0




Tags:

hybrid combiner,

high power hybrid coupler,

quadrature hybrid coupler
