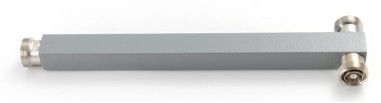

High Frequency 340/380-2700MHz DIN Female Power Splitter

Name: High Frequency 340/380-2700MHz DIN Female Power Splitter
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-PS-03427-ODx-S
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO 9000 ROHS

Model Number: VN-PS-03427-ODx-S

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiable

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            DIN Female Power Splitter, 2700MHz RF Power Splitter, High Frequency RF Power Splitter


Interface:	DIN Female	Frequency Range:	340/380-2700
VSWR:	≤1.25/≤1.30	Impedance:	50
Split Loss:	≤3.5/≤5.6/≤7.1	Application:	Indoor & Outdoor
ROHS:	Compliance

Interface:	DIN Female
Frequency Range:	340/380-2700
VSWR:	≤1.25/≤1.30
Impedance:	50
Split Loss:	≤3.5/≤5.6/≤7.1
Application:	Indoor & Outdoor
ROHS:	Compliance

Description

High Frequency 340/380-2700MHz DIN Female Power Splitter

340/380-2700MHz DIN Female Power Splitter

Less Insertion Loss
Good VSWR at all ports
Low PIM up to -165dBc@43dBm*2

VN-PS-03427-ODx-S-xxx.pdf

Part Number	VN-PS-03427-ODx-S-xxx
Operating Frequency ( MHz )	340/ 380-2700
Impedance ( Ohm )	50
Power Partition Coefficient@ODx	2-way	3-way		4-way
VSWR	≤1.25	≤1.25		≤1.30
Split Loss (dB)	≤3.5	≤5.6		≤7.1
IM3 (dBc @ 2×43dBm)@xxx	-140 / -150 / -155/ -160/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	DIN Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	318 × 25 × 25		365×25×25		399×25×25
Net Weight (g)	610 ± 20		725±20		835±20
Packing Dimensions (mm,L×W×H)	420×80×40		420×80×40		460×80×60
Packing Carton Size (mm,L×W×H)	434×435×195		434×435×195		480×445×275
ROHS Compliance	Yes
