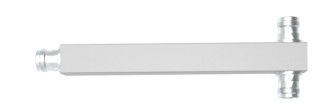

600-4200MHz N Female Power Splitter With ≤ 5.4 Split Loss
  • name
  • name
  • name

600-4200MHz N Female Power Splitter With ≤ 5.4 Split Loss

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-PS-0642-ONx-S-xxx
Interface:
N Female
Frequency Range:
600-4200MHz
VSWR:
≤1.25
Impedance:
50
Split Loss:
≤3.3/≤5.4/≤6.5
Application:
Indoor & Outdoor
ROHS:
Compliance
Highlight:

600MHz Power Splitter

,

N Female Power Splitter

Product Description

600-4200MHz N Female Power Splitter



  • Less Insertion Loss
  • Good VSWR at all ports
  • Low PIM up to -165dBc@43dBm*2



                                                                                                                                              VN-PS-0642-ONx-S-xxx.pdf

Part Number VN-PS-0642-ONx-S-xxx
Operating Frequency ( MHz ) 600-4200
Impedance ( Ohm ) 50
Power Partition Coefficient@ONx 2-way 3-way 4-way
VSWR ≤1.25 ≤1.25 ≤1.25
Split Loss (dB) ≤3.3 ≤5.4 ≤6.5
IM3 (dBc @ 2×43dBm)@xxx -140 / -150 / -155/ -160/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 213.5 × 25 × 25 240.24× 25 × 25 269.54× 25 × 25
Packing Dimensions (mm,L×W×H) 260 × 80 × 40 320×80×60 320×80×60
Packing Carton Size (mm,L×W×H) 540 × 420 × 140 655×420×140 655×420×140
ROHS Compliance Yes



600-4200MHz N Female Power Splitter With ≤ 5.4 Split Loss 0600-4200MHz N Female Power Splitter With ≤ 5.4 Split Loss 1
600-4200MHz N Female Power Splitter With ≤ 5.4 Split Loss 2600-4200MHz N Female Power Splitter With ≤ 5.4 Split Loss 3
600-4200MHz N Female Power Splitter With ≤ 5.4 Split Loss 4600-4200MHz N Female Power Splitter With ≤ 5.4 Split Loss 5
