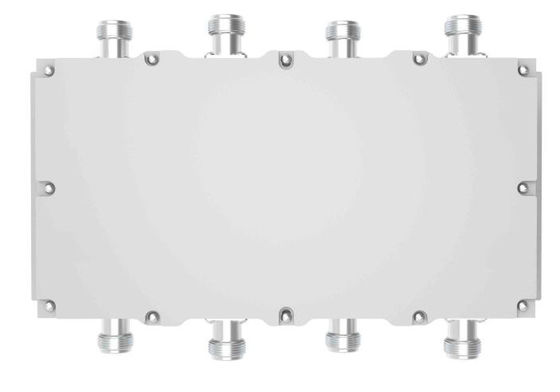

600-4200MHz N Female Hybrid 4 4 Combiner Low PIM -161dBC
  • name

600-4200MHz N Female Hybrid 4 4 Combiner Low PIM -161dBC

MOQ: 5pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 60pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC4x4-0642-300w-ON-xxx
Frequency:
600-4200MHz
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
Application:
DAS IBS
ROHS:
Compliance
Design:
Wide Band
VSWR:
1.3
Highlight:

N Female Hybrid Combiner

,

Low PIM N Female Hybrid Combiner

,

4200MHz N Female Hybrid Combiner

Product Description

600-4200MHz N Female Hybrid 4:4 Combiner Low PIM -161dBC



  • Good VSWR at all ports
  • Portable for installation
  • Low PIM -161dBc@43dBm*2


The hybrid combiner is used to split and combiner RF signals. It is related to the

3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid ,

and is most commonly used as combiner in distributed antenna system(DAS).



                                                                                                                                       VN-HC4x4-0642-300W-ON-xxx.pdf
Part Number VN-HC4x4-0642-300w-ON-xxx
Operating Frequency ( MHz ) 600-4200
Impedance ( Ohm ) 50
VSWR 1.3
Coupling (dB) 6.2
Insertion Loss (dB) ±1.6
Isolation (dB) 20
IM3 (dBc @ 2×43dBm)@xxx -150/-161
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
ROHS Compliance Yes







600-4200MHz N Female Hybrid 4 4 Combiner Low PIM -161dBC 0

Tags:

hybrid combiner,

high power hybrid coupler,

quadrature hybrid coupler
