698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter
  • name

698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PD-0727-SMA2
Frequency:
698-2700MHz 2Way SMA Female Wilkinson Splitter
Connector:
SMA Female
Color:
Customized
OEM/ODM:
Acceptable
ROHS:
Compliance
Product Description

698-2700MHz 2Way SMA Female Wilkinson Splitter



  • Insertion Loss
  • Widely used for In-building Solutions
  • Indoor



  The Wilkinson Power Splitter is a fundamental passive radio-frequency (RF) component.

Its primary role is to split an input signal into two or more output signals with equal phase and amplitude,

while providing high isolation between the output ports. In mobile communications,

the Wilkinson Splitter is critical for efficiently distributing RF power across multiple

paths without degrading signal integrity.



Part Number VN-PD-0727-SMA2
Operating Frequency ( MHz ) 698-2700
Impedance ( Ohm ) 50
VSWR ≤1.25
Isolation(dB) 20
Split Loss (dB) ≤3.0
Insert loss(dB) ≤0.4
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface SMA Female
Handling Power (Watt, max) IN to OUT 50W/0UT to IN 2W
Peak Power (Watt, max) 200

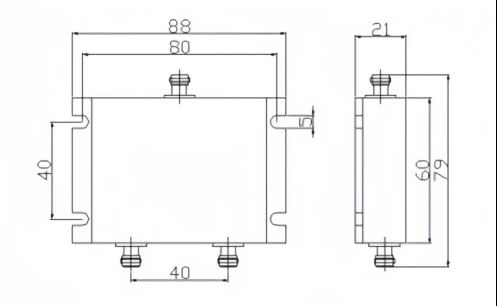

Dimension (mm)(L×W×H, excl connector) 80*40*21
ROHS Compliance Yes







                                            698-2700MHz 2Way SMA Female Wilkinson Splitter Power Splitter 0

Tags:

power passing splitter,

power pass splitter,

rf aerial splitter
