400-6000MHz 4 Way N Female Wilkinson Splitter
  • name

400-6000MHz 4 Way N Female Wilkinson Splitter

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PD-0460-NF4
Frequency:
400-6000MHz 4 Way N Female Wilkinson Splitter
Connector:
N Female
Color:
Customized
OEM/ODM:
Acceptable
ROHS:
Compliance
Product Description

400-6000MHz 2Way N Female Wilkinson Splitter



  • Insertion Loss
  • Widely used for In-building Solutions
  • Indoor

For a Four-way split, the input signal enters the Wilkinson Splitter and is divided into Four paths via quarter-wave transformers. These transformers match the impedance from the input to the Four outputs. The key innovation of the Wilkinson Splitter is the integration of a resistor connected between the two output ports. This resistor dissipates any power resulting from imbalances between the outputs, ensuring that reflected or unequal power is not reflected back to the input. Consequently, the Wilkinson Splitter maintains a matched condition at all ports.



Part Number VN-PD-0460-NF4
Operating Frequency ( MHz ) 400-6000
Impedance ( Ohm ) 50
Input Port VSWR ≤1.35
Output Port VSWR ≤1.25
Isolation(dB) 20
Insertion Loss(dB) ≤2.0
Operating Temperature ( ℃ ) -35 ~ + 75
Interface N Female
Handling Power (Watt, max) 30W as splitter; 2W as combiner

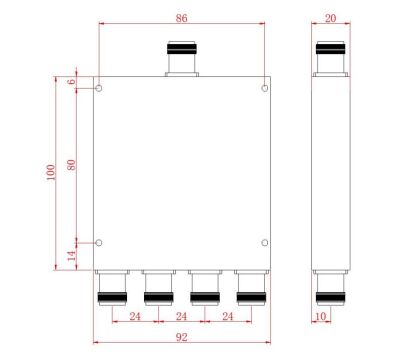

Dimension (mm)(L×W×H, excl connector) 100*92*20
ROHS Compliance Yes






                                                                          400-6000MHz 4 Way N Female Wilkinson Splitter 0
