698-4200MHz 2Way SMA Female Wilkinson Splitter
  • name

698-4200MHz 2Way SMA Female Wilkinson Splitter

MOQ: 5 pcs
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-PD-0742-SMA2
Frequency:
698-4200MHz 2Way SMA Female Wilkinson Splitter
Connector:
SMA Female
Color:
Customized
OEM/ODM:
Acceptable
ROHS:
Compliance
Product Description

698-4200MHz 2Way SMA Female Wilkinson Splitter



  • Insertion Loss
  • Widely used for In-building Solutions
  • Good isolation

The Wilkinson power splitter serves the critical function of dividing an input radio frequency (RF) signal into two or more output signals with minimal loss. Its primary purpose is to achieve power division while maintaining isolation between the output ports. Due to these characteristics, the Wilkinson splitter finds extensive use in modern RF and microwave systems.



Part Number VN-PD-0742-SMA2
Operating Frequency ( MHz ) 698-4200
Impedance ( Ohm ) 50
VSWR ≤1.2
Isolation(dB) 20
Split Loss (dB) ≤3.6
Amplitude Balance(dB) ±0.2
Phase Balance(°) ±3
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface SMA Female
Power Rating (Watt) Splitter-10W Combiner-1W

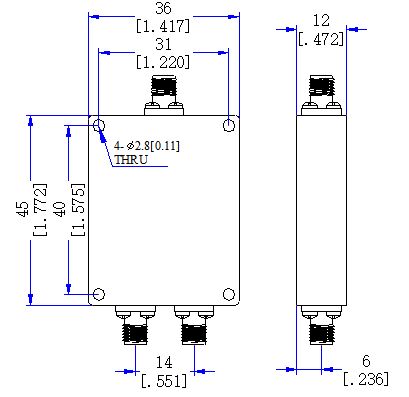

Dimension (mm)(L×W×H, excl connector) 45*36*12
Net Weight (g) 50±5%
ROHS Compliance Yes
