76-81GHz WR-12 WAVEGUIDE FILTER

Broad frequency coverage (1 GHz to 110 GHz+)
Rugged and durable mechanical construction
No external power required (passive device)

Radar systems –
A WAVEGUIDE FILTER separates transmit and receive frequencies in a frequency‑agile radar, or rejects out‑of‑band interference.
Satellite communication (Satcom) ground stations –
A WAVEGUIDE FILTER removes unwanted spurious emissions from the upconverter before the signal reaches the antenna.
Electronic warfare (EW) systems –
A WAVEGUIDE FILTER selects the desired frequency band while rejecting jamming signals outside that band.
Flange matching –
A WAVEGUIDE FILTER requires the same flange type (UG, CPR, cover, or choke) as the adjacent waveguide components.
Power rating verification –
Before operating a WAVEGUIDE FILTER, verify its average and peak power handling capabilities.
Tuning (for adjustable filters) –
Some WAVEGUIDE FILTER have tuning screws; adjust them carefully while monitoring the response on a network analyzer.

VN-WGFLT-7681-WR12.pdf

Part Number	VN-WGFLT-7681-WR12
Operating Frequency ( GHz )	76-81
Rejection(dB)	77dB@73GHz
Insertion Loss(dB)	≤1.8
Interface	WR12(BJ740)
Operating Temperature ( ℃ )	-30 ~ + 65

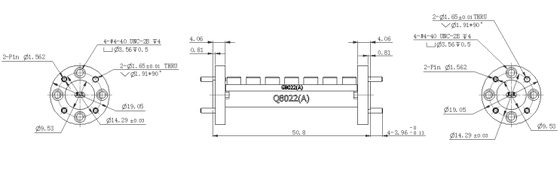

Dimension(mm)	As below
ROHS Compliance	Yes

76-81GHz WR-12 WAVEGUIDE FILTER
