550-2700MHz N Female Directional Coupler

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-DC-05527-ONx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

Low Pim coaxial directional coupler

,

N Female coaxial directional coupler

,

15db directional coupler

OEM:
OK
ODM:
OK
Customized:
Ok
Design:
Air Dielectric Stripline
Color:
Optional
Frequency:
550-2700MHz
OEM:
OK
ODM:
OK
Customized:
Ok
Design:
Air Dielectric Stripline
Color:
Optional
Frequency:
550-2700MHz
Description

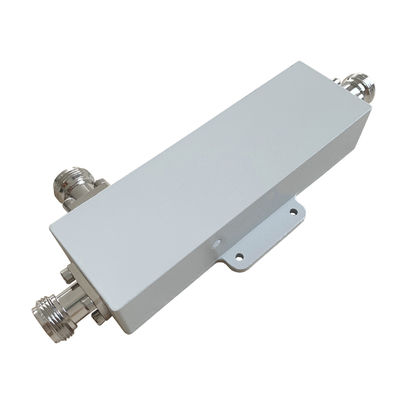

550-2700MHz N Female Directional Coupler

550-2700MHz N Female Directional Coupler



  • For DAS IBS Application
  • Up To -165dbc @ 43dBM*2
  • Screw Or With Brakets



VN-DC-0527-ONx-xxx.doc.pdf

Part Number VN-DC-05527-ONx
Operating Frequency ( MHz ) 550-2700
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 5 ± 0.9 6 ± 0.9 7 ± 0.9 10 ± 1.1 15 ± 1.5 20 ± 1.5
Insertion Loss (dB) ≤2.2 ≤1.7 ≤1.3 ≤0.8 ≤0.4 ≤0.2
Isolation (dB) ≥25 ≥26 ≥27 ≥30 ≥35 ≥40
IM3 (dBc @ 2×43dBm) -153 / -163
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm) 127 × 40× 24.5( excludes connector)
Net Weight (g) 350± 20
Packing Dimensions (mm ) 180 × 75 × 30
Packing Carton Size (mm ) 400 × 380 × 170
ROHS Compliance Yes



550-2700MHz N Female  Directional Coupler 0



Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.
