550-6000MHz 4.3-10 Female Directional Coupler

Name: 550-6000MHz 4.3-10 Female Directional Coupler
Brand: Vinncom
SKU: VN-DC-05560-OPx
Rating: 4.5 (192 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-DC-05560-OPx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: T/T, L/C, D/A, D/P

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    3dB RF Directional Coupler, Hybrid RF Directional Coupler, Customized wideband directional coupler


Operating Frequency ( MHz ):	550-6000	Connector:	4.3-10 Female
VSWR:	≤1.35	PIM:	-150/-155/-161/-165
Handling Power (Watt, Max):	500	Degree Of Protection:	IP65

Operating Frequency ( MHz ):	550-6000
Connector:	4.3-10 Female
VSWR:	≤1.35
PIM:	-150/-155/-161/-165
Handling Power (Watt, Max):	500
Degree Of Protection:	IP65

Description

550-6000MHz 4.3-10 Female Directional Coupler

550-6000MHz 4.3-10 Female Directional Coupler

High directivity
Good PIM up to -165@43dBm*2
Good returen loss

VN-DC-05560-OPx-xxx.pdf

Part Number

VN-DC-05560-OPx

Operating Frequency ( MHz )

550-6000

Impedance ( Ohm )

VSWR

≤1.35

Coupling (dB)

5 ± 1.4

6 ± 1.4

7 ± 1.4

8 ± 1.4

10 ± 1.6

15± 1.6

20 ± 1.8

Insertion Loss (dB)

≤2.5

≤1.8

≤1.5

≤1.2

≤1.1

≤0.4

≤2.2

Isolation (dB)

≥21

≥22

≥23

≥24

≥26

≥31

≥35

IM3 (dBc @ 2×43dBm)

-150/-155/-161/-165

Application

Indoor/Outdoor

Degree of Protection

IP65

Operating Temperature ( ℃ )

-40 ~ + 80

Interface

4.3-10 Female

Handling Power (Watt, max)

500

Peak Power (Watt, max)

1500

Dimension (mm)(L×W×H, excl connector)

127X40X31

Net Weight (g)

550± 5%

Packing Dimensions (mm,L×W×H)

190 × 80 × 45

Packing Carton Size (mm,L×W×H)

430 × 400 × 105

ROHS Compliance

Yes

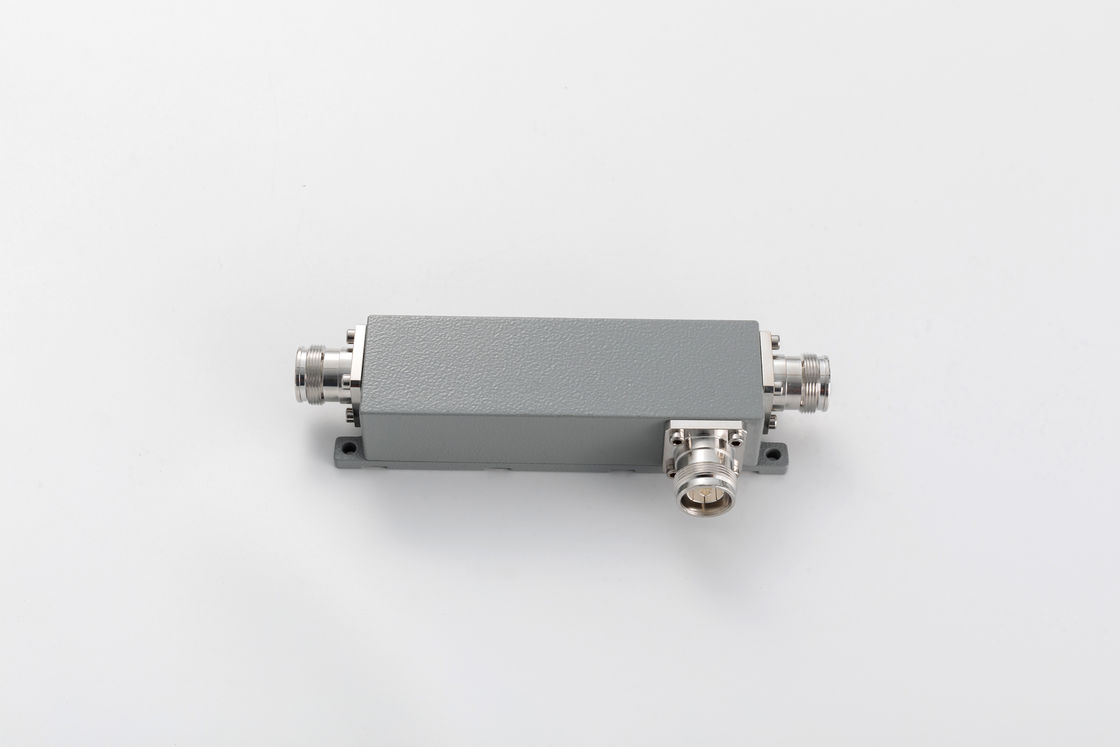

550-6000MHz 4.3-10 Female Directional Coupler 0

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.
