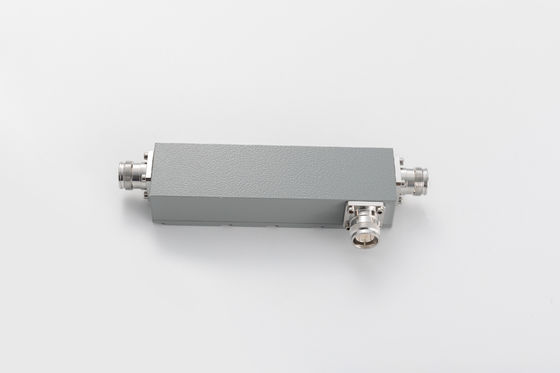

350-6000MHz 4.3-10 Female Directional Coupler
  • name
  • name

350-6000MHz 4.3-10 Female Directional Coupler

MOQ: 5pcs
Price: negotiation
Delivery Period: 2-4weeks
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-DC-03560-OP
Interface:
4.3-10 Female
Dimension (Mm)::
156.9X44X31
Handling Power::
500
IM3 (DBc @ 2×43dBm)::
-150/-155/-161/-165
VSWR::
≤1.3（350~4800Mhz)≤1.45（4800~6000Mhz)
Degree Of Protection::
IP65
High Light::
350-6000Mhz Directional Coupler
Highlight:

6000Mhz 6db directional coupler

,

Hybrid 6db directional coupler

,

6db hybrid coupler in microwave

Product Description

350-6000MHz 4.3-10 Female Directional Coupler 0350-6000MHz 4.3-10 Female Directional Coupler



  • Wide band
  • Good returen loss
  • High isolation



 VN-DC-03560-OPx-XXX.pdf

Part Number VN-DC-03560-OP
Operating Frequency ( MHz ) 350-6000
Impedance ( Ohm ) 50
VSWR ≤1.3(350~4800Mhz)≤1.45(4800~6000Mhz)
Coupling (dB) 20 ± 2.3
Insertion Loss (dB) ≤0.3
Isolation (dB) ≥37(350~4800Mhz)≥35(4800~6000Mhz)
IM3 (dBc @ 2×43dBm) -150/-155/-161/-165
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 156.9X44X31
Net Weight (g) 665± 5%
Packing Dimensions (mm,L×W×H) 240× 80 × 35
Packing Carton Size (mm,L×W×H) 420 × 250 × 160
ROHS Compliance Yes






350-6000MHz 4.3-10 Female Directional Coupler 1350-6000MHz 4.3-10 Female Directional Coupler 2





Rf passive devices are mainly used in base station construction of wireless communication system and indoor power distribution system. Especially in the building of wireless signal distribution and coverage of a wide range of applications, a variety of. Rf passive devices are used to connect or distribute RF signals in base station construction and indoor power distribution projects. Indoor power distribution system is to connect or branch the signals sent by the base station through rf passive equipment, and then distribute them to each coverage point of the antenna through the feeder, so as to achieve good coverage of c indoor wireless signals.



Tags:

directional coupler,

coaxial directional coupler,

transformer directional coupler
