550-6000MHz N Female Directional Coupler

Hot Products

Test Cable And Jumper

sales@vinncom.com

+8617755151077

Contact Now

550-6000MHz N Female Directional Coupler

MOQ:	5 PCS
Price:	negotiation
Payment Method:	T/T, L/C, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

RoHS/ISO9000

Model Number

VN-DC-05560

Operating Frequency ( MHz ):

550-6000

Connector:

N Female

VSWR:

≤1.35

-150/-155/-161/-165

Handling Power (Watt, Max):

Degree Of Protection:

Highlight:

300W coaxial directional coupler

Broadband coaxial directional coupler

300W broadband directional coupler

Product Description

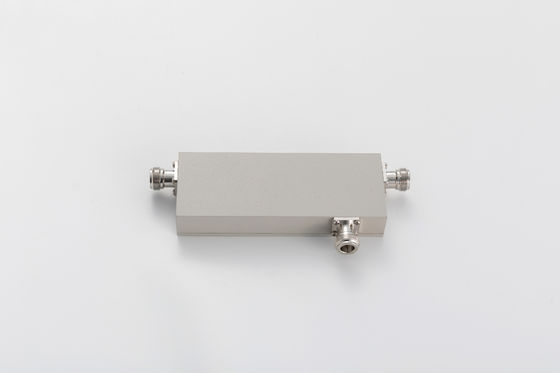

550-6000MHz N Female Directional Coupler

High directivity
Good PIM up to -165@43dBm*2
Good returen loss

VN-DC-05560-ONx-xxx.pdf

Part Number

VN-DC-05560-ON

Operating Frequency ( MHz )

550-6000

Impedance ( Ohm )

VSWR

≤1.35

Coupling (dB)

5 ± 1.4

6 ± 1.4

7 ± 1.4

8 ± 1.4

10 ± 1.6

15± 1.6

20 ± 1.8

Insertion Loss (dB)

≤2.5

≤1.8

≤1.5

≤1.2

≤1.1

≤0.4

≤2.2

Isolation (dB)

≥21

≥22

≥23

≥24

≥26

≥31

≥35

IM3 (dBc @ 2×43dBm)

-150/-155/-161/-165

Application

Indoor/Outdoor

Degree of Protection

IP65

Operating Temperature ( ℃ )

-40 ~ + 80

Interface

N Female

Handling Power (Watt, max)

300

Peak Power (Watt, max)

1200

Dimension (mm)(L×W×H, excl connector)

127X40X31

Net Weight (g)

450± 5%

Packing Dimensions (mm,L×W×H)

190 × 80 × 45

Packing Carton Size (mm,L×W×H)

430 × 400 × 105

ROHS Compliance

Yes

550-6000MHz N Female Directional Coupler 0

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.
