N Female DB RF Directional Coupler 300MHz-1000MHz For DAS / IBS
  • name
  • name

N Female DB RF Directional Coupler 300MHz-1000MHz For DAS / IBS

MOQ: 5pcs
Price: negotiation
Payment Method: T/T, L/C, D/A, D/P
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-DC-0310-ONx
Interface:
N Female
Handling Power::
300
IM3 (DBc @ 2×43dBm)::
-150/-155/-161/-165
VSWR::
≤1.2
Degree Of Protection::
IP65
High Light::
300-1000 MHz Directional Coupler
Highlight:

N Female RF Directional Coupler

,

IBS RF Directional Coupler

,

DAS db coupler

Product Description

300-1000 MHz N Female Directional Coupler VSWR  ≤1.2 PIM -150/-155/-161/-165 Directional Coupler For IBS And DAS



  • High isolation

  • Good PIM up to -165@43dBm*2

  • Good VSWR at all ports



Part Number VN-DC-0310-ONx
Operating Frequency ( MHz ) 300-1000
Impedance ( Ohm ) 50
VSWR ≤1.2
Coupling (dB) 5 6 7 10 15 20
Tolerance (dB) ± 0.8 ± 0.8 ± 0.8 ± 1.0 ± 1.0 ± 1.5
Insertion Loss (dB) ≤2.1 ≤1.6 ≤1.5 ≤0.8 ≤0.4 ≤0.22
Isolation (dB) ≥25 ≥26 ≥27 ≥30 ≥35 ≥40
IM3 (dBc @ 2×43dBm) -150/-155/-161/-165
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 269× 47× 21
Packing Dimensions (mm,L×W×H) 420 × 80 × 40
Packing Carton Size (mm,L×W×H) 434 × 435 × 195
ROHS Compliance Yes

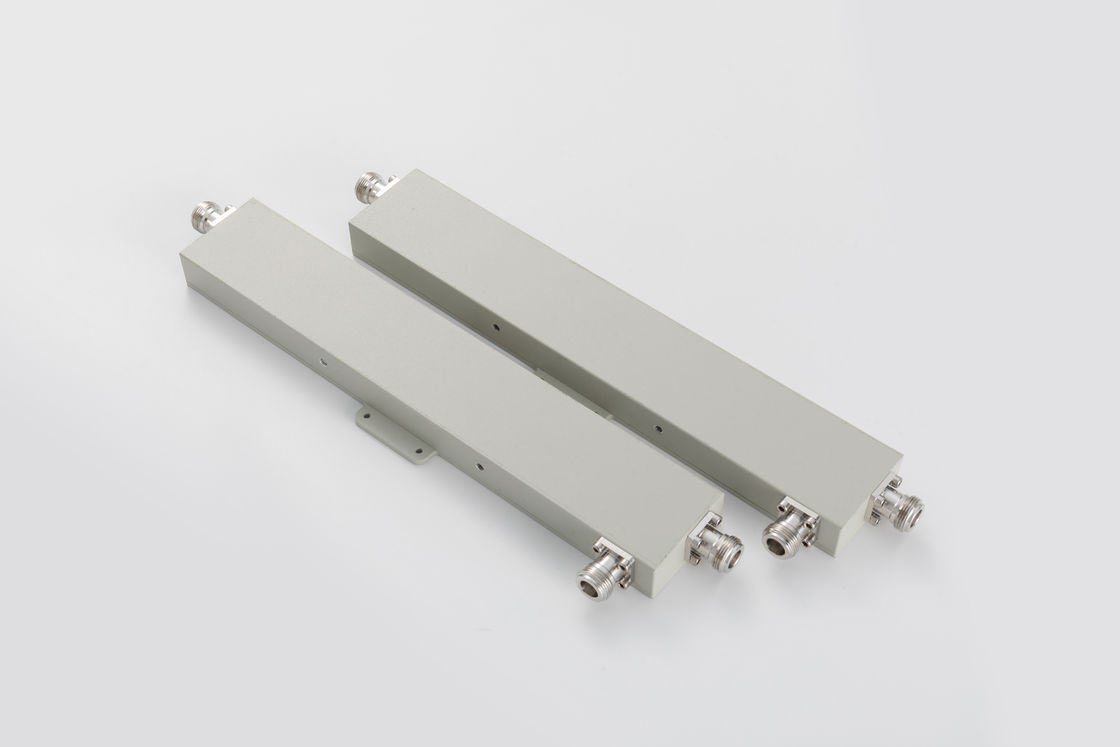

N Female DB RF Directional Coupler 300MHz-1000MHz For DAS / IBS 0N Female DB RF Directional Coupler 300MHz-1000MHz For DAS / IBS 1


Rf passive devices are mainly used in base station construction of wireless communication system and indoor power distribution system. Especially in the building of wireless signal distribution and coverage of a wide range of applications, a variety of. Rf passive devices are used to connect or distribute RF signals in base station construction and indoor power distribution projects. Indoor power distribution system is to connect or branch the signals sent by the base station through rf passive equipment, and then distribute them to each coverage point of the antenna through the feeder, so as to achieve good coverage of c indoor wireless signals.
