600-4000MHZ 4.3-10 Female 15dB High Frequency Directional Coupler

Name: 600-4000MHZ 4.3-10 Female 15dB High Frequency Directional Coupler
Brand: Vinncom
SKU: VN-DC-0640-OPx
Rating: 4.7 (100 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-DC-0640-OPx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    15dB transformer directional coupler, 4000MHZ transformer directional coupler, high frequency directional coupler


OEM:	OK	ODM:	OK
Customized:	Ok	Design:	Air Dielectric Stripline
Color:	Optional	Frequency:	600-4000MHz

OEM:	OK
ODM:	OK
Customized:	Ok
Design:	Air Dielectric Stripline
Color:	Optional
Frequency:	600-4000MHz

Description

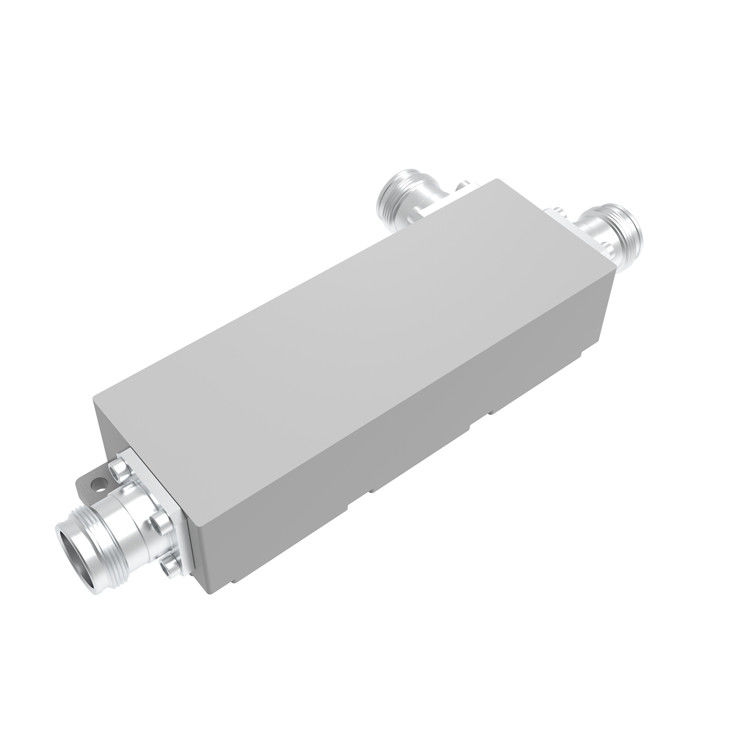

600-4000MHZ 4.3-10 Female 15dB High Frequency Directional Coupler

600-4000MHZ 4.3-10 Female 5dB 6dB 7dB 8dB 10dB 12dB 15dB 20dB RF Air Dielectric DAS IBS Directional Coupler

Can Be Customized
Up To -165dbc @ 43dBM*2
Screw Or With Brakets

Part Number	VN-DC-0640-OPx
Operating Frequency ( MHz )	600-4000
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	5	6	7	8	10	12	15	20
Tolerance (dB)	± 0.9	± 0.9	± 0.9	± 0.9	± 1.2	± 1.5	± 1.5	± 1.5
Insertion Loss (dB)	≤2.1	≤1.7	≤1.5	≤1.2	≤0.8	≤0.7	≤0.5	≤0.4
Isolation (dB)	≥22	≥23	≥24	≥25	≥27	≥29	≥32	≥37
IM3 (dBc @ 2×43dBm)	-153 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	134 × 47× 31
Net Weight (g)	600± 5%
Packing Dimensions (mm,L×W×H)	185 × 80 × 45
Packing Carton Size (mm,L×W×H)	430 × 385 × 105
ROHS Compliance	Yes

600-4000MHZ 4.3-10 Female 15dB High Frequency Directional Coupler 0

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.
