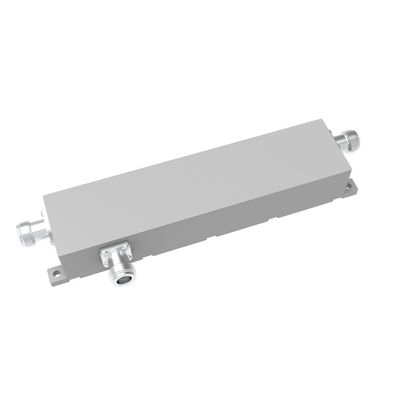

550 To 3800MHZ 8dB 1200 Watt DAS RF Directional Coupler
  • name
  • name
  • name
  • name

550 To 3800MHZ 8dB 1200 Watt DAS RF Directional Coupler

MOQ: 5 PCS
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-DC-05538-ONx
OEM:
OK
ODM:
OK
Customized:
Ok
Design:
Air Dielectric Stripline
Color:
Optional
Frequency:
550-3800MHz
Highlight:

8dB DAS RF Directional Coupler

,

1200 Watt RF Directional Coupler

,

3800MHZ coaxial directional coupler

Product Description

 550-3800MHZ NFemale 5dB 6dB 7dB 8dB 10dB 12dB 15dB 20dB RF Air Dielectric DAS IBS Directional Coupler



  • Good returen loss
  • Coupling Degree: Can Be Customized
  • Low PIM : Up To -165dbc @ 43dBM*2



Part Number VN-DC-05538-ONx
Operating Frequency ( MHz ) 550-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 5 6 7 8 10 12 15 20
Tolerance (dB) ± 0.9 ± 0.9 ± 0.9 ± 0.9 ± 1.2 ± 1.5 ± 1.5 ± 1.5
Insertion Loss (dB) ≤2.1 ≤1.7 ≤1.5 ≤1.2 ≤0.8 ≤0.7 ≤0.5 ≤0.4
Isolation (dB) ≥22 ≥23 ≥24 ≥25 ≥27 ≥29 ≥32 ≥37
IM3 (dBc @ 2×43dBm) -153 / -163
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector)

182.5 × 44× 31
Net Weight (g)

775± 5%
Packing Dimensions (mm,L×W×H) 180 × 75 × 30
Packing Carton Size (mm,L×W×H) 400 × 380 × 175
ROHS Compliance Yes







550 To 3800MHZ 8dB 1200 Watt DAS RF Directional Coupler 0550 To 3800MHZ 8dB 1200 Watt DAS RF Directional Coupler 1





Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.







Tags:

directional coupler,

coaxial directional coupler,

transformer directional coupler
