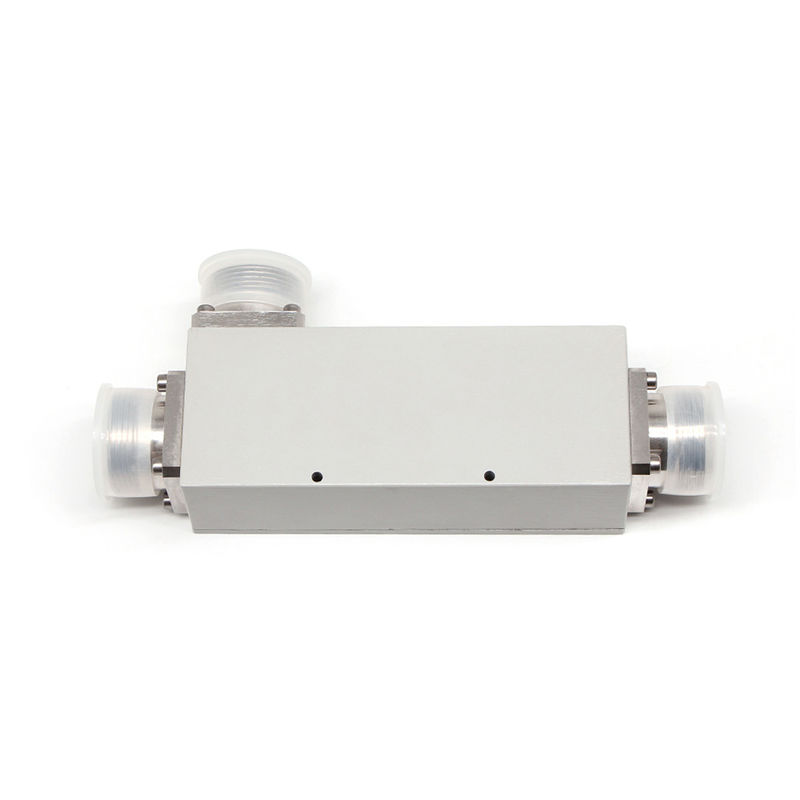

698-2700MHz DIN Female Directional Coupler

Name: 698-2700MHz DIN Female Directional Coupler
Brand: Vinncom
SKU: VN-DC-0727-ODx
Rating: 4.8 (167 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-DC-0727-ODx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    40dB hybrid directional coupler, ODM hybrid directional coupler, ODM low frequency directional coupler


OEM:	OK	ODM:	OK
Customized:	Ok	Design:	Air Dielectric Stripline
Color:	Optional	Frequency:	698-2700MHz

OEM:	OK
ODM:	OK
Customized:	Ok
Design:	Air Dielectric Stripline
Color:	Optional
Frequency:	698-2700MHz

Description

698-2700MHz DIN Female Directional Coupler

698-2700MHz DIN Female Directional Coupler

Good PIM up to -163@43dBm*2
Good VSWR at all ports
Good returen loss

VN-DC-0727-ODx-xxx.pdf

Part Number	VN-DC-0727-ODx
Operating Frequency ( MHz )	698-2700
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	5 ± 0.8	6 ± 0.8	7 ± 0.8	10 ± 0.8	15 ± 1	20 ± 1	30 ± 1.2	40 ± 1.5
Insertion Loss (dB)	≤2.05	≤1.6	≤1.4	≤0.8	≤0.7	≤0.3	≤0.3	≤0.2
Isolation (dB)	≥25	≥26	≥27	≥30	≥35	≥40	≥45	≥55
IM3 (dBc @ 2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	Din Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)	122 × 48 × 36 (excludes connector)
Net Weight (g)	700 ± 20
Packing Dimensions (mm)	190 × 80 × 45
Packing Carton Size(mm)	430 × 400 × 105
ROHS Compliance	Yes

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.
