698-3800MHz 4.3-10 Female Directional Coupler
  • name
  • name
  • name
  • name

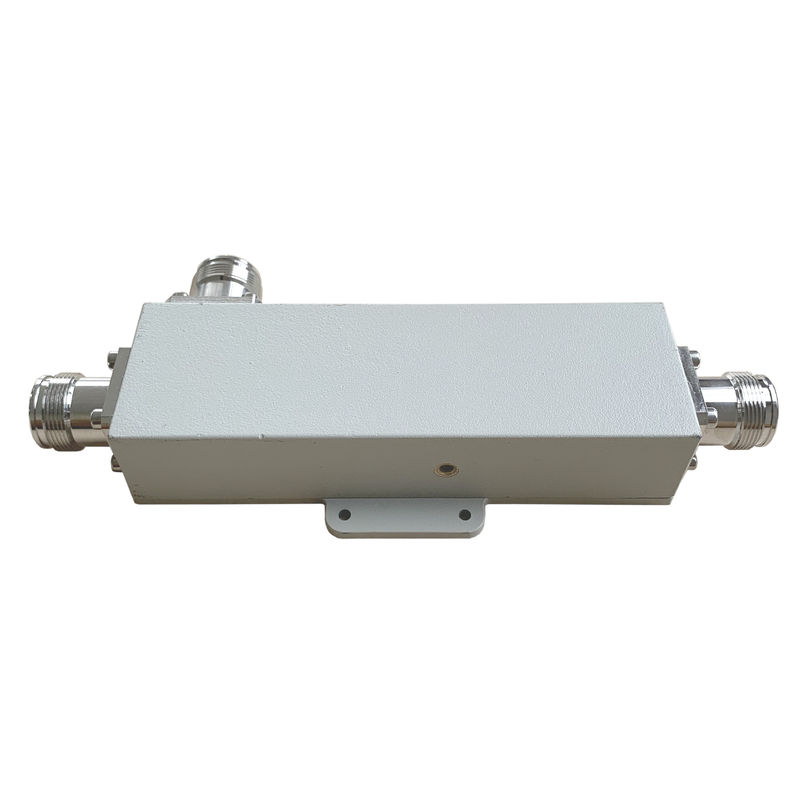

698-3800MHz 4.3-10 Female Directional Coupler

MOQ: 5 PCS
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-DC-0738-OPx
OEM:
OK
ODM:
OK
Customized:
Ok
Design:
Air Dielectric Stripline
Color:
Optional
Frequency:
617/698-3800MHz
Protection:
IP65
Application:
Indoor And Outdoor
3rd PIM:
-153dbc,-163dbc @43dbm*2
Connector:
4.3-10 Female
Highlight:

Air Dielectric RF Directional Coupler

,

Waterproof RF Directional Coupler

,

IBS broadband directional coupler

Product Description

698-3800MHz 4.3-10 Female Directional Coupler





  • Low PIM -163dBc@43dBm*2
  • Good returen loss
  • High directivity



 VN-DC-0738-OPx-xxx.pdf

Part Number VN-DC-0738-OPx
Operating Frequency ( MHz ) 698-3800, 617-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 5 ± 0.8 6 ± 0.8 7 ± 0.9 10 ± 1.0 15 ± 1 20 ± 1.2 30 ± 1.5
Insertion Loss (dB) ≤2.05 ≤1.65 ≤1.45 ≤0.8 ≤0.5 ≤0.22 ≤0.2
Isolation (dB) ≥23 ≥24 ≥25 ≥28 ≥33 ≥38 ≥45
IM3 (dBc @ 2×43dBm) -155 / -163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm) 136 × 44 × 30(excludes connector)
Net Weight (g) 535 ± 20
Packing Dimensions (mm) 190 × 80 × 45
Packing Carton Size(mm) 430 ×400 × 105
ROHS Compliance Yes



698-3800MHz 4.3-10 Female Directional Coupler 0




Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.
