350/380-3800MHz 4.3-10 Female Directional Coupler

Name: 350/380-3800MHz 4.3-10 Female Directional Coupler
Brand: Vinncom
SKU: VN-DC-03538-OPx
Rating: 5 (138 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-DC-03538-OPx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    OEM Stripline Directional Coupler, 30dB Stripline Directional Coupler, OEM surface mount directional coupler


OEM:	OK	ODM:	OK
Customized:	Ok	Design:	Air Dielectric Stripline
Color:	Optional	Frequency:	350/380-3800MHz
Protection:	IP65	Application:	Indoor And Outdoor
3rd PIM:	-153dbc,-163dbc @43dbm*2	Connector:	4.3-10 Female

OEM:	OK
ODM:	OK
Customized:	Ok
Design:	Air Dielectric Stripline
Color:	Optional
Frequency:	350/380-3800MHz
Protection:	IP65
Application:	Indoor And Outdoor
3rd PIM:	-153dbc,-163dbc @43dbm*2
Connector:	4.3-10 Female

Description

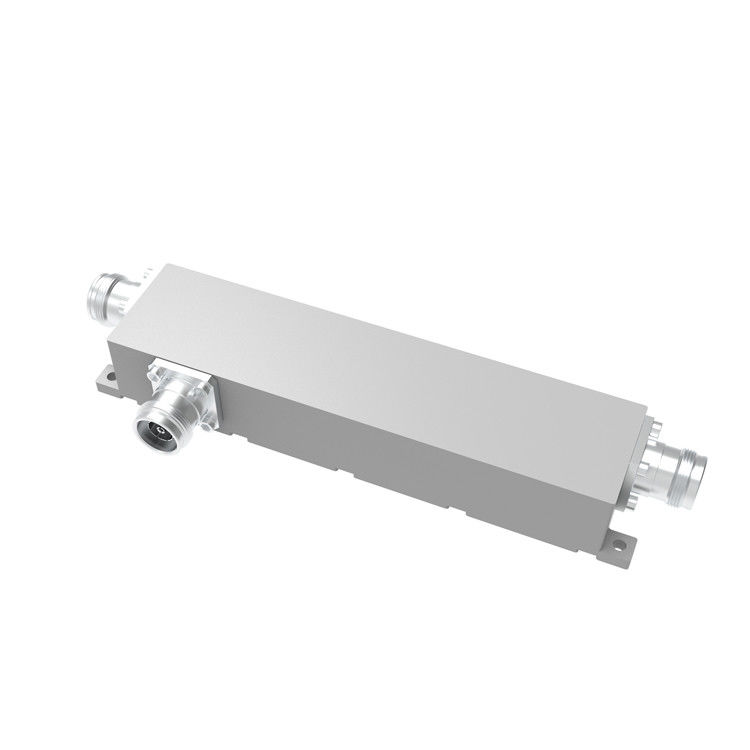

350/380-3800MHz 4.3-10 Female Directional Coupler

350/380-3800MHz 4.3-10 Female Directional Coupler

Can Be Customized
Up To -165dbc @ 43dBM*2
Screw Or With Brakets

VN-DC-03538-OPx-xxx.pdf

Part Number	VN-DC-03538-OPx
Operating Frequency ( MHz )	350/380-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	6 ± 1.2	7 ± 1.2	8± 1.2	10± 1.2	15 ± 1.5	20 ± 1.7	30 ± 1.8
Insertion Loss (dB)	≤1.8	≤1.5	≤1.1	≤.0.9	≤0.5	≤0.2	≤0.17
Isolation (dB)	≥24	≥25	≥26	≥28	≥33	≥28	≥48
IM3 (dBc @ 2×43dBm)	-153 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt) max)	1500
Dimension (mm)	182.5 × 44× 31 (excludes connector)
Net Weight (g)	775± 5%
Packing Dimensions (mm)	240 ×80 × 35
Packing Carton Size (mm)	500 × 420 × 160
ROHS Compliance	Yes

350/380-3800MHz 4.3-10 Female Directional Coupler 0

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.
