350/380-3800MHz 4.3-10 Female Directional Coupler

Hot Products

Test Cable And Jumper

sales@vinncom.com

+8617755151077

Contact Now

350/380-3800MHz 4.3-10 Female Directional Coupler

MOQ:	5 PCS
Price:	Negotiable
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	1000pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Vinncom

Certification

ROHS ISO9000

Model Number

VN-DC-03538-OPx

Customized:

Design:

Air Dielectric Stripline

Color:

Optional

Frequency:

350/380-3800MHz

Protection:

Application:

Indoor And Outdoor

3rd PIM:

-153dbc,-163dbc @43dbm*2

Connector:

4.3-10 Female

Highlight:

OEM Stripline Directional Coupler

30dB Stripline Directional Coupler

OEM surface mount directional coupler

Product Description

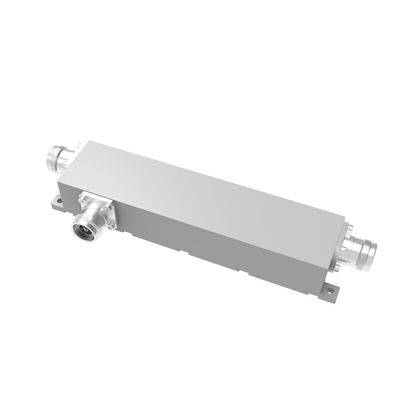

350/380-3800MHz 4.3-10 Female Directional Coupler

Can Be Customized
Up To -165dbc @ 43dBM*2
Screw Or With Brakets

VN-DC-03538-OPx-xxx.pdf

Part Number	VN-DC-03538-OPx
Operating Frequency ( MHz )	350/380-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	6 ± 1.2	7 ± 1.2	8± 1.2	10± 1.2	15 ± 1.5	20 ± 1.7	30 ± 1.8
Insertion Loss (dB)	≤1.8	≤1.5	≤1.1	≤.0.9	≤0.5	≤0.2	≤0.17
Isolation (dB)	≥24	≥25	≥26	≥28	≥33	≥28	≥48
IM3 (dBc @ 2×43dBm)	-153 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt) max)	1500
Dimension (mm)	182.5 × 44× 31 (excludes connector)
Net Weight (g)	775± 5%
Packing Dimensions (mm)	240 ×80 × 35
Packing Carton Size (mm)	500 × 420 × 160
ROHS Compliance	Yes

350/380-3800MHz 4.3-10 Female Directional Coupler 0

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.
