550-6000MHz N Female Directional Coupler

Name: 550-6000MHz N Female Directional Coupler
Brand: Vinncom
SKU: VN-DC-05560-ONx
Rating: 4.7 (105 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-DC-05560-ONx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            5dB RF Directional Coupler, Low PIM RF Directional Coupler, 5dB directional coupler in microwave


OEM:	OK	ODM:	OK
Customized:	Ok	Design:	Air Dielectric Stripline
Color:	Optional	Frequency:	550-6000MHz
Protection:	IP65	Application:	Indoor And Outdoor
Coupling Degree:	Customized

OEM:	OK
ODM:	OK
Customized:	Ok
Design:	Air Dielectric Stripline
Color:	Optional
Frequency:	550-6000MHz
Protection:	IP65
Application:	Indoor And Outdoor
Coupling Degree:	Customized

Description

550-6000MHz N Female Directional Coupler

550-6000MHz N Female Directional Coupler

For DAS IBS Application
Coupling Degree: Can Be Customized
Low PIM : Up To -165dbc @ 43dBM*2

VN-DC-05560-ONx-xxx.pdf

Part Number	VN-DC-05560-ONx
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	≤1.35
Coupling (dB)	5 ± 1.4	6 ± 1.4	7 ± 1.4	8 ± 1.4	10 ± 1.6	15 ± 1.6	20 ± 1.6
Insertion Loss (dB)	≤2.50	≤1.80	≤1.5	≤1.1	≤1.1	≤0.4	≤0.22
Isolation (dB)	≥21	≥22	≥23	≥24	≥26	≥31	≥35
IM3 (dBc @ 2×43dBm)	-150
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)	127× 40× 31 (excludes connectors)
Net Weight (g)	450± 5%
Packing Dimensions (mm)	180 × 75 × 30
Packing Carton Size(mm)	400 × 380 × 170
ROHS Compliance	Yes

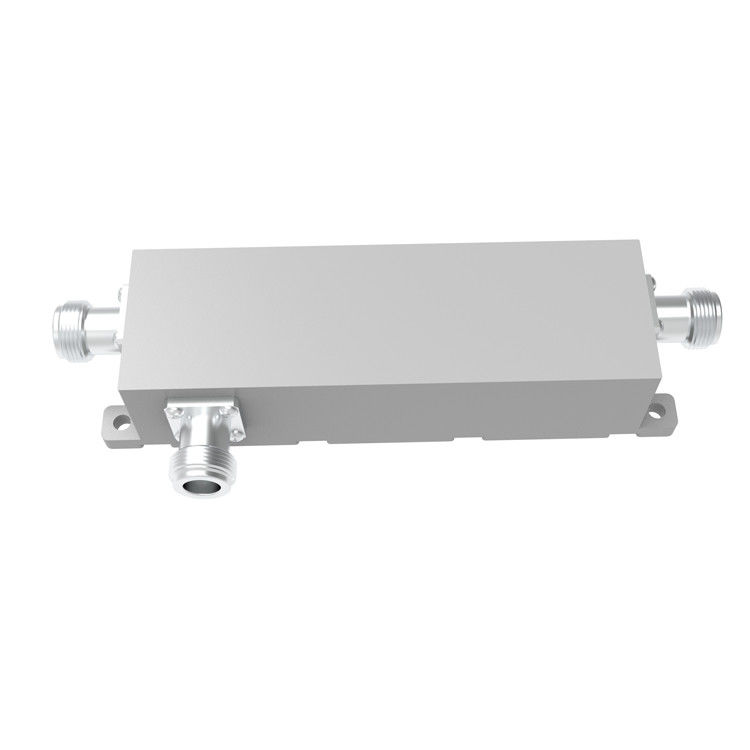

550-6000MHz N Female Directional Coupler 0

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.
