138-960MHz N Female Directional Coupler

Name: 138-960MHz N Female Directional Coupler
Brand: Vinncom
SKU: VN-DC-138960-ONx
Rating: 5 (193 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-DC-138960-ONx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 600 pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    138MHz minicircuits directional coupler, 3 Port minicircuits directional coupler, 138MHz 3 port directional coupler


Application:	Public Safety DAS IBS	Frequency:	138-960MHz
OEM/ODM:	Acceptable	Connector:	N Female
Color:	Red	Low PIM:	-153dbc 163dbc @43dbm*2

Application:	Public Safety DAS IBS
Frequency:	138-960MHz
OEM/ODM:	Acceptable
Connector:	N Female
Color:	Red
Low PIM:	-153dbc 163dbc @43dbm*2

Description

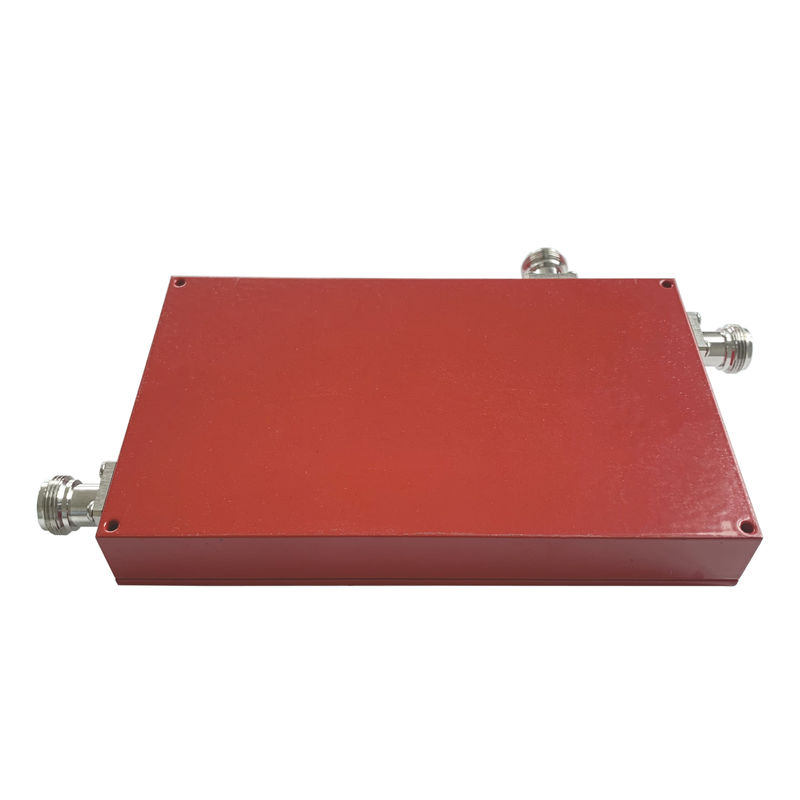

138-960MHz N Female Directional Coupler

138-960MHz N Female Directional Coupler

Good VSWR at all ports
Good returen loss
Wide band

VN-DC-138960-ONx-xxx.doc.pdf

Part Number	VN-DC-138960-ONx
Operating Frequency ( MHz )	138-960
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	6 ± 1.5	10 ± 1.7	15 ± 1.7	20 ± 1.7	25 ± 2.0	30 ± 2.0
Insertion Loss (dB)	≤1.80	≤1.20	≤0.5	≤0.4	≤0.4	≤0.3
Isolation (dB)	≥24	≥28	≥33	≥38	≥43	≥45
IM3 (dBc @ 2×43dBm)	-153
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating humidity	≤95%
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	165 × 100 × 23
Net Weight (g)	870 ± 20
Packing Weight (kg/pcs)	TBD / 12
Packing Dimensions (mm,L×W×H)	230 × 135 × 35
Packing Carton Size (mm,L×W×H)	470 × 280 × 115
ROHS Compliance	Yes
