550-6000MHz 4.3-10 Female Directional Coupler

Name: 550-6000MHz 4.3-10 Female Directional Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-DC-05560-OPx-xxx
Price: 360.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-DC-05560-OPx-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              SMD RF Directional Coupler, IBS RF Directional Coupler, 300w smd directional coupler


OEM/ODM:	OK	Low PIM:	160dbc , -163dbc , -165dbc @698-3500MHZ
Design:	Air Dielectric Stripline	Color:	Optional
Frequency:	550/600-6000MHz Wide Band	Protection:	IP65
Application:	Indoor And Outdoor DAS IBS	Coupling Degree:	Customized

OEM/ODM:	OK
Low PIM:	160dbc , -163dbc , -165dbc @698-3500MHZ
Design:	Air Dielectric Stripline
Color:	Optional
Frequency:	550/600-6000MHz Wide Band
Protection:	IP65
Application:	Indoor And Outdoor DAS IBS
Coupling Degree:	Customized

Description

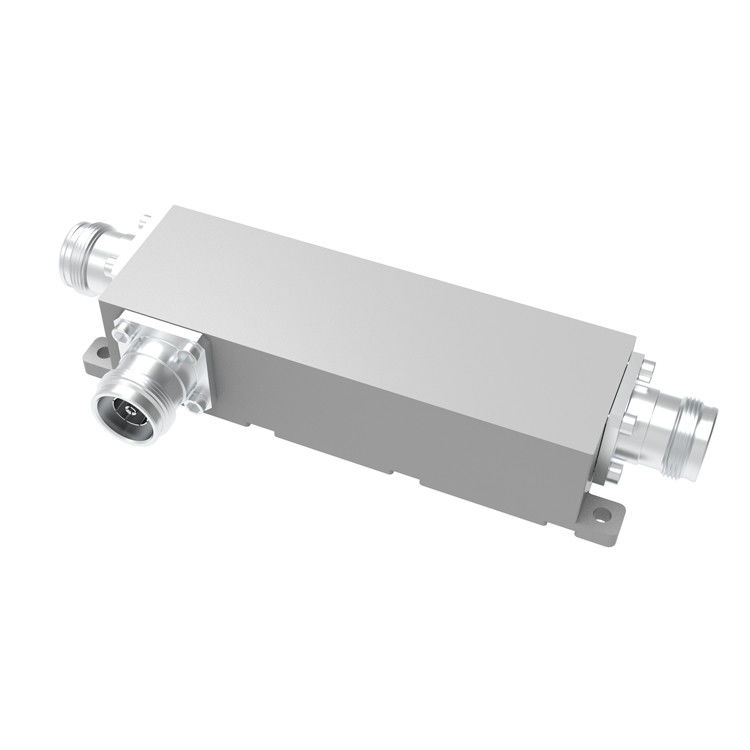

550-6000MHz 4.3-10 Female Directional Coupler

550-6000MHz 4.3-10 Female Directional Coupler

For DAS IBS Application
Coupling Degree: Can Be Customized
Installation: Screw Or With Brakets

VN-DC-05560-OPx-xxx.pdf

Part Number	VN-DC-05560-OPx-xxx
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	≤1.30
Coupling (dB)	5 ± 1.4	6 ± 1.4	7 ± 1.4	8 ± 1.4	10 ± 1.6	15 ± 1.6	20 ± 1.8
Insertion Loss (dB)	≤2.50	≤1.80	≤1.5	≤1.2	≤01.1	≤0.4	≤0.22
Isolation (dB)	≥21	≥22	≥23	≥24	≥26	≥31	≥35
IM3 (dBc @ 2×43dBm)	-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Mini Din Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)	127X40X31 (excludes connectors)
Net Weight (g)	550± 5%
Packing Dimensions (mm)	190 × 80 × 45
Packing Carton Size(mm)	430 × 400 × 105
ROHS Compliance	Yes
