617-3800MHz Wideband Hybrid 3db Directional Coupler Low PIM -161dBc
  • name
  • name
  • name
  • name
  • name

617-3800MHz Wideband Hybrid 3db Directional Coupler Low PIM -161dBc

MOQ: 5 PCS
Price: negotiation
Standard Packaging: 1pc/box,20pcs/carton
Delivery Period: 7-10 working days
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS ISO9001
Model Number
VN-DC-0638-ONx
OEM:
Ok
ODM:
Ok
Customized:
Ok
Design:
Air Dielectric Stripline
Color:
Optional
Frequency:
617-3800MHz
Protection:
IP65
Application:
Indoor & Outdoor
3rd PIM:
-161dbc@2x43dBm
Connector:
N Female
Highlight:

Wideband 3db directional coupler

,

Hybrid 3db directional coupler

,

Low PIM wideband hybrid coupler

Product Description

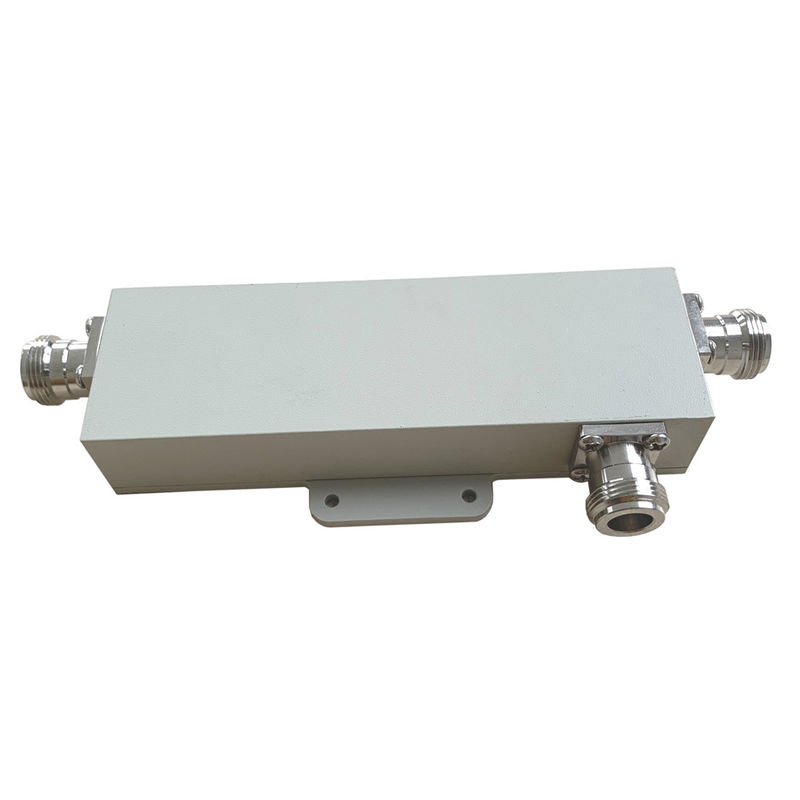

Low PIM -161dBc 617-3800MHz N Female 5dB 6dB 7dB 8dB 10dB 13dB15dB 20dB 30dB RF Wideband Directional Coupler for IBS DAS



  • For DAS IBS Application
  • Coupling Degree: 5-30dB
  • Low PIM : Up to -165dBc @ 2x43dBm



Part Number VN-DC-0638-ONx
Operating Frequency ( MHz ) 617-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 5 ± 1.0 6 ± 1.0 7 ± 1.2 10 ± 1.3 15 ± 1.3 20 ± 1.3 30 ± 1.7
Insertion Loss (dB) ≤2.1 ≤1.7 ≤1.45 ≤1.0 ≤0.5 ≤0.22 ≤0.2
Isolation (dB) ≥23 ≥24 ≥25 ≥28 ≥33 ≥38 ≥45
IM3 (dBc @ 2×43dBm) -161 / -163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm) 136 × 44 × 23(w/o connector)
Net weight(g) 360 ± 20
Packing Dimensions (mm) 180 × 75 × 30
Packing Carton Size(mm) 400 × 380 × 170
ROHS Compliance Yes



617-3800MHz Wideband Hybrid 3db Directional Coupler Low PIM -161dBc 0
617-3800MHz Wideband Hybrid 3db Directional Coupler Low PIM -161dBc 1
617-3800MHz Wideband Hybrid 3db Directional Coupler Low PIM -161dBc 2
617-3800MHz Wideband Hybrid 3db Directional Coupler Low PIM -161dBc 3
617-3800MHz Wideband Hybrid 3db Directional Coupler Low PIM -161dBc 4



Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.

Vinncom directional coupler are based on different design ,such as micro-stripline,air-dielectric ,thin film ,waveguide etc.

Directional couplers have many applications. These include providing a signal sample for measurement or monitoring, feedback, combining feeds to and from antennas, providing signal taps for cable and/or Distributed Antenna Systems such as cable TV,mobile signal coverage and separating transmitted and received signals on telecom systems.

Tags:

directional coupler,

coaxial directional coupler,

transformer directional coupler
