698-3800MHz N Female Directional Coupler
  • name
  • name
  • name
  • name
  • name
  • name

698-3800MHz N Female Directional Coupler

MOQ: 5 pcs
Price: negotiation
Standard Packaging: box/bubble pack/carton
Delivery Period: depends on your quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 800pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
Hefei,China
Brand Name
Vinncom
Certification
ISO9000/RoHS
Model Number
VN-DC-0738-INX
Color:
Black Or Gray
IM3:
Customization
Connector:
N Female
Material: Cavity:
Aluminum Silver-plated
Frequency:
700-3800MHz
Impedance:
50Ω
Highlight:

BTS RF Directional Coupler

,

20dB RF Directional Coupler

,

20dB rf antenna coupler

Product Description

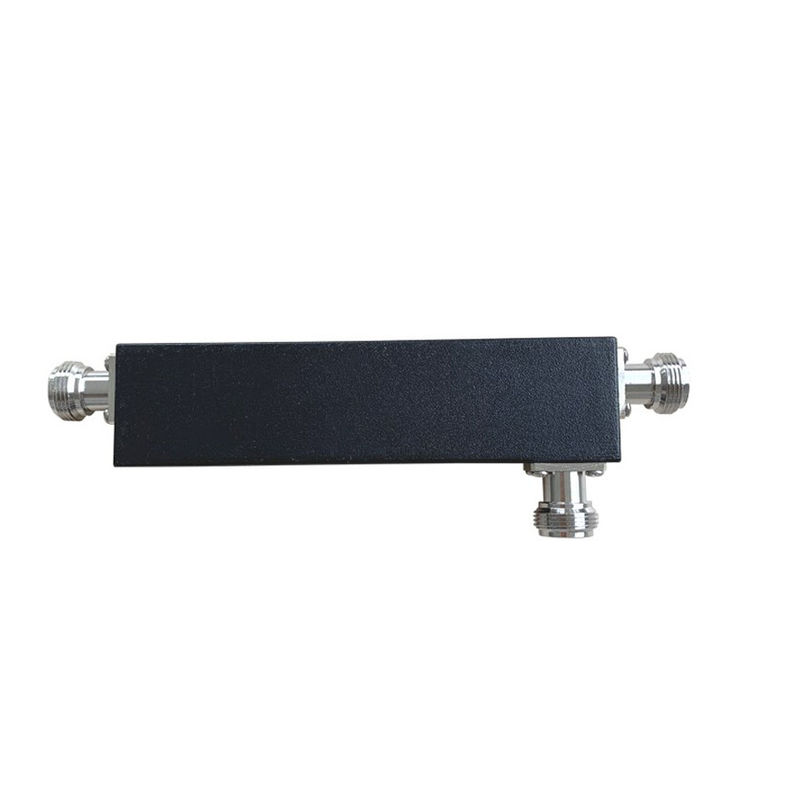

698-3800MHz N Female Directional Coupler



● Low Insertion Loss
● High power handing
● Low PIM Low VSWR



 VN-DC-0738-INx-xxx.doc.pdf

Part Number VN-DC-0738-INx
Operating Frequency ( MHz ) 700-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 5 ± 0.8 6 ± 0.8 7 ± 0.9 10 ± 1.0 15 ± 1 20 ± 1.2
Insertion Loss (dB) ≤2.05 ≤1.60 ≤1.40 ≤0.96 ≤0.5 ≤0.22
Isolation (dB) ≥23 ≥24 ≥25 ≥28 ≥33 ≥38
IM3 (dBc @ 2×43dBm) -150/-155 / -160
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm) 125 × 31 × 20 (excludes connector)
Net Weight (g) 180 ± 20
Packing Dimensions (mm ) 160 × 65 × 30
Packing Carton Size (mm) 350 × 340 × 170



698-3800MHz N Female Directional Coupler 0698-3800MHz N Female Directional Coupler 1
Directional couplers are common microwave/millimeter wave components in microwave measurement and other microwave systems, which can be used for signal isolation, separation and mixing, such as power monitoring, source power stability, signal source isolation, transmission and reflection of sweep frequency test. It is a directional microwave power divider and an indispensable part of modern sweep reflectometer. It usually has waveguide, coaxial line, ribbon line and microstrip.
Product Application
698-3800MHz N Female Directional Coupler 2

Rf passive components are mainly applied in wireless communication system construction of the base station and indoor distribution system. Especially in the building indoor wireless signal distribution covers the application of a wide range of large Numbers. Rf passive components in the base station construction and indoor distribution project have the effect of rf signal connection or distribution. Indoor distribution system is to launch the base station signal connection or shunt by rf passive components, the cover points through the feeder for the antenna, so as to achieve continuous good indoor wireless signal coverage. Indoor distribution system mainly includes the source and day supply distribution system two parts.
Passive components is the main part of day feed system.

Related Products
698-3800MHz N Female Directional Coupler 3
698-2700MHz/698-3800MHz IP65 N Female4.3-10 FemaleDIN Female Connector can available.
Our Tester
698-3800MHz N Female Directional Coupler 4698-3800MHz N Female Directional Coupler 5

This is our basic test instrument.Following test record.

698-3800MHz N Female Directional Coupler 6

698-3800MHz N Female Directional Coupler 7

698-3800MHz N Female Directional Coupler 8

The performance parameters of RF passive devices mainly include operating band, insertion loss, input-output standing wave, port isolation, in-band fluctuation, out-of-band suppression, intermodulation products and power capacity.Good performance benefits the network.












Tags:

directional coupler,

coaxial directional coupler,

transformer directional coupler
