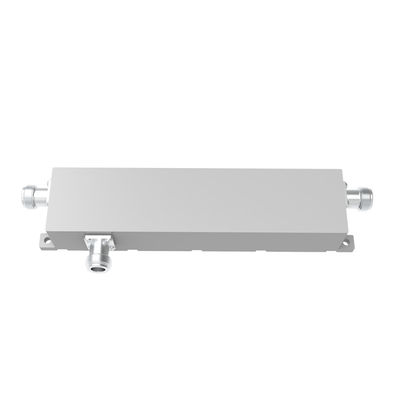

350/380-3800MHz N Female Directional Coupler

MOQ:	5 pcs
Price:	negotiation
Standard Packaging:	box/bubble pack/carton
Delivery Period:	depends on your quantity
Payment Method:	T/T, L/C, D/A, D/P
Supply Capacity:	800pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

Hefei,China

Brand Name

Vinncom

Certification

ISO9000/RoHS

Model Number

VN-DC-03538-ONx-xxx

General Color:

Frequency:

350-3800MHz

Impedance:

Connector:

N Female

Degree Of Protection:

IM3 (dBc @ 2×43dBm):

-160/-163

Highlight:

30dB rf hybrid combiner

3800MHz rf hybrid combiner

30dB rf power coupler

Product Description

350/380-3800MHz N Female Directional Coupler

Good Flatness
Good VSWR at all ports
High isolation

VN-DC-03538-ONx-xxx.pdf

Part Number	VN-DC-03538-ONx
Operating Frequency ( MHz )	350/380-3800MHZ
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	6 ± 1.2	7 ± 1.2	8± 1.2	15 ± 1.5	20 ± 1.7	30 ± 1.8
Insertion Loss (dB)	≤1.8	≤1.5	≤1.1	≤0.4	≤0.2	≤0.17
Isolation (dB)	≥24	≥25	≥26	≥33	≥28	≥48
IM3 (dBc @ 2×43dBm)	-160 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)	182.5 × 44× 31 (excludes connector)
Net Weight (g)	700± 5%
Packing Dimensions (mm)	240 × 80 × 35
Packing Carton Size (mm)	500 × 420 × 160

Directional couplers are most frequently constructed from two coupled transmission lines set close enough together such that energy passing through one is coupled to the other. This technique is favoured at the microwave frequencies where transmission line designs are commonly used to implement many circuit elements. However, lumped component devices are also possible at lower frequencies, such as the audio frequencies encountered in telephony. Also at microwave frequencies, particularly the higher bands, waveguide designs can be used.

Product Application

Rf passive devices are mainly used in base station construction of wireless communication system and indoor distribution system. In particular, there are many kinds and a large number of applications in the indoor distribution coverage of no-line signals in buildings. Rf passive devices play the role of connecting or distributing RF signals in base station construction and indoor distribution engineering. Indoor distribution system is to connect or branch the signals transmitted by the base station through rf passive devices, and disperse them to the antenna of each coverage point through feeders, so as to achieve good continuous coverage of indoor wireless signals.
