600-4000MHz N Female Directional Coupler

Hot Products

Test Cable And Jumper

sales@vinncom.com

+8617755151077

Contact Now

600-4000MHz N Female Directional Coupler

MOQ:	5 pcs
Price:	negotiation
Standard Packaging:	bubble pack/box/carton
Delivery Period:	depends on your quantity
Payment Method:	T/T,L/C, D/A, D/P
Supply Capacity:	1000pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Vinncom

Certification

ISO9000/RoHS

Model Number

VN-DC-0640-ONx

Frequency:

600-4000MHz

Impedance ( Ohm ):

VSWR:

≤1.25

Handling Power (Watt, Max):

Application:

Indoor/Outdoor

IM3 (dBc @ 2×43dBm):

Highlight:

600MHz RF Directional Coupler

Minicircuits RF Directional Coupler

IP65 minicircuits directional coupler

Product Description

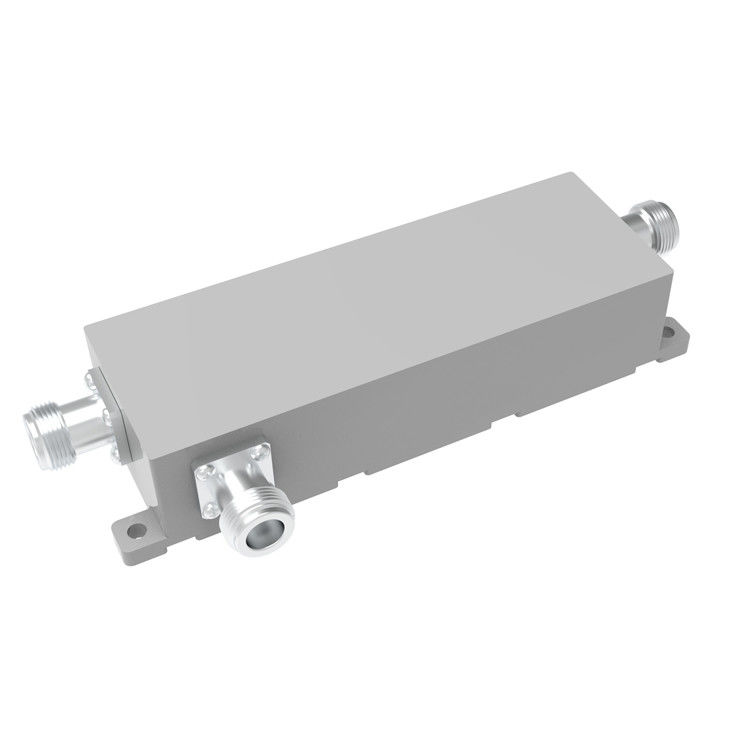

600-4000MHz IP65 300W RF Directional Coupler N Female Connector

Wide band
Good Flatness
Good VSWR at all ports

VN-DC-0640-ONx-xxx.doc.pdf

Part Number	VN-DC-0640-ONx
Operating Frequency ( MHz )	600-4000
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)	5	6	7	8	10	12	15	20
Tolerance (dB)	± 0.9	± 0.9	± 0.9	± 0.9	± 1.2	± 1.5	± 1.5	± 1.5
Insertion Loss (dB)	≤2.1	≤1.7	≤1.5	≤1.2	≤0.8	≤0.7	≤0.5	≤0.4
Isolation (dB)	≥22	≥23	≥24	≥25	≥27	≥29	≥32	≥37
IM3 (dBc @ 2×43dBm)	-153 / -163
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	134 × 47× 31
Net Weight (g)	500±5%
Packing Dimensions (mm,L×W×H)	180 × 80 x 45
Packing Carton Size (mm,L×W×H)	430 × 385 × 105

This RF coupler is directional and is manufactured with N ports. Our directional coupler design uses N ports that are female gender and 50 Ohm impedance.

The Vinncom directional coupler design is rated for a minimum frequency of 600 MHz and a maximum frequency of 4 GHz. Directional coupler is constructed with a coupling value of 5/6/7/810/12/15/20 dB.And Handling Power is 300W.

Application

Directional couplers are important devices in RF systems. Their ability to sample either the forward or reverse direction of signal propagation allows a wide range of applications in test, measurement, monitoring, feedback and control.

Large amounts of government building projects in the construction of urban construction, reinforced concrete buildings rise of wireless signal propagation was severely hampered, subway, underground tunnel and underground parking garage and other underground construction space is also wireless coverage blind area, users in the building using mobile communication service severely restrict, operators to improve the user experience improve service quality and competitiveness, We will intensify efforts to develop and optimize networks. By constructing a large number of base stations and distributing signals indoors, indoor coverage is solved to achieve seamless coverage and provide users with efficient and sustainable wireless network services without blind spots.
