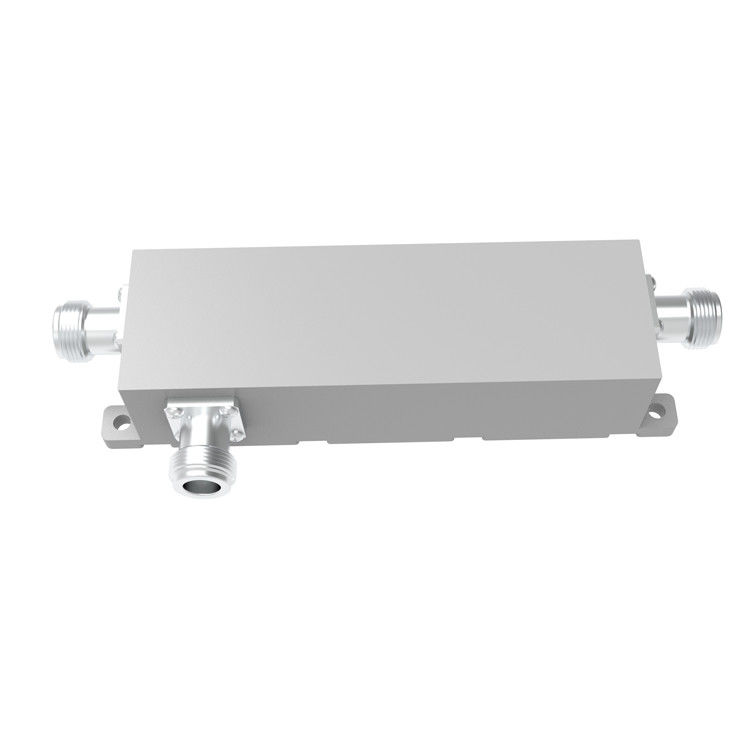

550-6000MHz N Female Directional Coupler

Name: 550-6000MHz N Female Directional Coupler
Brand: Vinncom
SKU: VN-DC-05560-ONx-xxx
Rating: 4.8 (153 reviews)

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO9000/RoHS

Model Number: VN-DC-05560-ONx-xxx

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Packaging Details: box/carton

Delivery Time: depends on your quantity

Payment Terms: T/T, L/C, D/A, D/P

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Antenna 30db directional coupler, PIM 30db directional coupler, 30db antenna splitter combiner


Interface:	N Female	Dimension (mm):	127× 40× 31（excludes Connectors）
Handling Power:	300W	IM3 (dBc @ 2×43dBm):	-160 163
VSWR:	≤1.30	Degree Of Protection:	IP65

Interface:	N Female
Dimension (mm):	127× 40× 31（excludes Connectors）
Handling Power:	300W
IM3 (dBc @ 2×43dBm):	-160 163
VSWR:	≤1.30
Degree Of Protection:	IP65

Description

550-6000MHz N Female Directional Coupler

550-6000MHz N Female Directional Coupler

High isolation
Wide band
Good VSWR at all ports

VN-DC-05560-ONx-xxx.pdf

Part Number	VN-DC-05560-ONx
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	≤1.35
Coupling (dB)	5 ± 1.4	6 ± 1.4	7 ± 1.4	8 ± 1.4	10 ± 1.6	15 ± 1.6	20 ± 1.6
Insertion Loss (dB)	≤2.20	≤1.80	≤1.5	≤1.1	≤0.8	≤0.22	≤0.2
Isolation (dB)	≥21	≥22	≥23	≥24	≥26	≥31	≥36
IM3 (dBc @ 2×43dBm)	-160 163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)	127× 40× 31 (excludes connectors)
Net Weight (g)	455± 5%
Packing Dimensions (mm)	180 × 75 × 30
Packing Carton Size(mm)	400 × 380 × 170
ROHS Compliance	Yes

Rf passive devices are mainly used in base station construction of wireless communication system and indoor power distribution system. Especially in the building of wireless signal distribution and coverage of a wide range of applications, a variety of. Rf passive devices are used to connect or distribute RF signals in base station construction and indoor power distribution projects. Indoor power distribution system is to connect or branch the signals sent by the base station through rf passive equipment, and then distribute them to each coverage point of the antenna through the feeder, so as to achieve good coverage of c indoor wireless signals.
