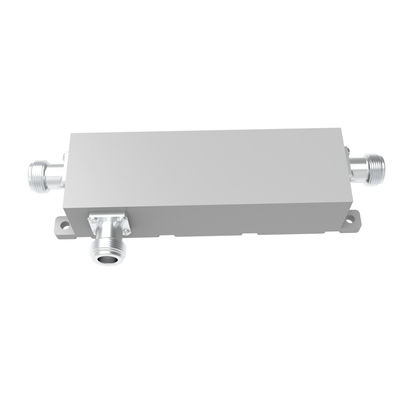

550-6000MHz N Female Directional Coupler
  • name
  • name
  • name
  • name

550-6000MHz N Female Directional Coupler

MOQ: 5 PCS
Price: negotiation
Standard Packaging: box/carton
Delivery Period: depends on your quantity
Payment Method: T/T, L/C, D/A, D/P
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO9000/RoHS
Model Number
VN-DC-05560-ONx-xxx
Interface:
N Female
Dimension (mm):
127× 40× 31（excludes Connectors）
Handling Power:
300W
IM3 (dBc @ 2×43dBm):
-160 163
VSWR:
≤1.30
Degree Of Protection:
IP65
Highlight:

Antenna 30db directional coupler

,

PIM 30db directional coupler

,

30db antenna splitter combiner

Product Description

550-6000MHz N Female Directional Coupler



  • High isolation
  • Wide band
  • Good VSWR at all ports



    VN-DC-05560-ONx-xxx.pdf

Part NumberVN-DC-05560-ONx
Operating Frequency ( MHz )550-6000
Impedance ( Ohm )50
VSWR≤1.35
Coupling (dB)5 ± 1.46 ± 1.47 ± 1.48 ± 1.410 ± 1.615 ± 1.620 ± 1.6
Insertion Loss (dB)≤2.20≤1.80≤1.5≤1.1≤0.8≤0.22≤0.2
Isolation (dB)≥21≥22≥23≥24≥26≥31≥36
IM3 (dBc @ 2×43dBm)-160 163
ApplicationIndoor & Outdoor
Degree of ProtectionIP65
Operating Temperature ( ℃ )-40 ~ + 80
InterfaceN Female
Handling Power (Watt, max)300
Peak Power (Watt, max)1200
Dimension (mm)

127× 40× 31

(excludes connectors)

Net Weight (g)455± 5%
Packing Dimensions (mm)180 × 75 × 30
Packing Carton Size(mm)400 × 380 × 170
ROHS ComplianceYes



550-6000MHz N Female Directional Coupler 0550-6000MHz N Female Directional Coupler 1


Rf passive devices are mainly used in base station construction of wireless communication system and indoor power distribution system. Especially in the building of wireless signal distribution and coverage of a wide range of applications, a variety of. Rf passive devices are used to connect or distribute RF signals in base station construction and indoor power distribution projects. Indoor power distribution system is to connect or branch the signals sent by the base station through rf passive equipment, and then distribute them to each coverage point of the antenna through the feeder, so as to achieve good coverage of c indoor wireless signals.
