550-6000MHz 4.3-10 Female Directional Coupler

Name: 550-6000MHz 4.3-10 Female Directional Coupler
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-DC-05560-OPx
Price: 360.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: ISO9000/RoHS

Model Number: VN-DC-05560-OPx

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiation

Packaging Details: bubble pack/box/carton

Delivery Time: depends on your quanrtity

Payment Terms: T/T, L/C, D/A, D/P

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      High Power RF Directional Coupler, 500 Watt RF Directional Coupler, 6G high power rf coupler


Operating Frequency ( MHz ):	550-6000	Impedance ( Ohm ):	50
VSWR:	≤1.30	IM3 (dBc @ 2×43dBm):	-155 / -163
Application:	Indoor & Outdoor	Degree Of Protection:	IP65

Operating Frequency ( MHz ):	550-6000
Impedance ( Ohm ):	50
VSWR:	≤1.30
IM3 (dBc @ 2×43dBm):	-155 / -163
Application:	Indoor & Outdoor
Degree Of Protection:	IP65

Description

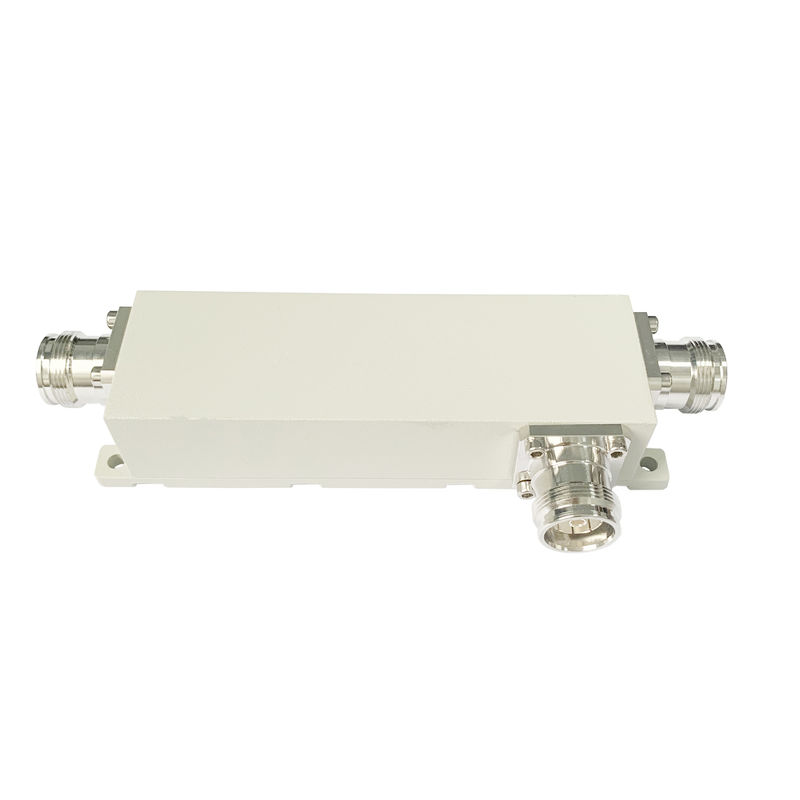

550-6000MHz 4.3-10 Female Directional Coupler

550-6000MHz 4.3-10 Female Directional Coupler

Flat response 550 to 6000 MHz
Minimal RF Insertion Loss
Low Passive Intermodulation (PIM)

VN-DC-05560-OPx-xxx.pdf

Part Number	VN-DC-05560-OPx
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	≤1.30
Coupling (dB)	5 ± 1.4	6 ± 1.4	7 ± 1.4	8 ± 1.4	10 ± 1.6	15 ± 1.6	20 ± 1.6
Insertion Loss (dB)	≤2.20	≤1.80	≤1.5	≤1.1	≤0.8	≤0.22	≤0.2
Isolation (dB)	≥21	≥22	≥23	≥24	≥26	≥31	≥36
IM3 (dBc @ 2×43dBm)	-155 / -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Mini Din Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)	127X40X31 (excludes connectors)
Net Weight (g)	550± 5%
Packing Dimensions (mm)	190 × 80 × 45
Packing Carton Size(mm)	430 × 400 × 105
ROHS Compliance	Yes
