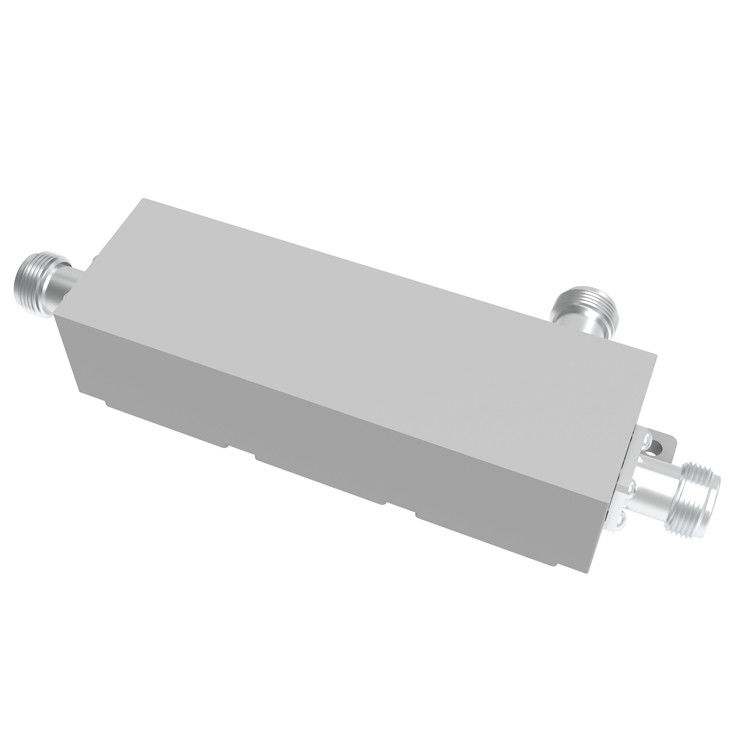

OEM 5dB wideband Coaxial Directional Coupler 698MHz-6000MHz

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-DC-0760-ON5

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: negotiation

Packaging Details: bubble+box

Delivery Time: 2-4weeks

Payment Terms: T/T, L/C, D/A, D/P

Supply Ability: 500pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

5dB coaxial directional coupler

,

Minicircuits coaxial directional coupler

,

698MHz minicircuits coupler

Frequency:
698-6000MHz
Impedance ( Ohm ):
50
Color:
Black/gray
Material:
Aluminum Cavity With Copper Connector
Connector:
N Female
Size:
127mm× 40mm× 31mm
Frequency:
698-6000MHz
Impedance ( Ohm ):
50
Color:
Black/gray
Material:
Aluminum Cavity With Copper Connector
Connector:
N Female
Size:
127mm× 40mm× 31mm
Description
OEM 5dB wideband Coaxial Directional Coupler 698MHz-6000MHz

698-6000MHz 5dB N Female RF Directional Coupler



  • Wide band
  • High isolation
  • Portable for installation



Part Number

VN-DC-0760-ON5
Operating Frequency ( MHz ) 698-6000
Impedance ( Ohm ) 50
VSWR ≤1.35
Coupling (dB) 5 ± 1.4
Insertion Loss (dB) ≤2.5
Isolation (dB) ≥21
IM3 (dBc @ 2×43dBm) -150
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 127× 40× 31
Net Weight (g) 450± 5%
Packing Dimensions (mm,L×W×H) 180 × 75 × 30
Packing Carton Size (mm,L×W×H) 400 × 380 × 170
ROHS Compliance Yes








OEM 5dB wideband Coaxial Directional Coupler 698MHz-6000MHz 0OEM 5dB wideband Coaxial Directional Coupler 698MHz-6000MHz 1
