Product Details
Place of Origin: China
Brand Name: Vinncom
Certification: RoHS/ISO9000
Model Number: VN-DC-035052-IN
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: negotiation
Delivery Time: 2-4weeks
Payment Terms: T/T, L/C, D/A, D/P
Interface: |
N Female |
Dimension (Mm):: |
151 × 31× 17 |
Handling Power:: |
300 |
IM3 (DBc @ 2×43dBm):: |
-150/-155/-161/-165 |
VSWR:: |
≤1.2 |
Degree Of Protection:: |
IP65 |
High Light:: |
350-520 MHz N Female Directional Coupler |
Interface: |
N Female |
Dimension (Mm):: |
151 × 31× 17 |
Handling Power:: |
300 |
IM3 (DBc @ 2×43dBm):: |
-150/-155/-161/-165 |
VSWR:: |
≤1.2 |
Degree Of Protection:: |
IP65 |
High Light:: |
350-520 MHz N Female Directional Coupler |

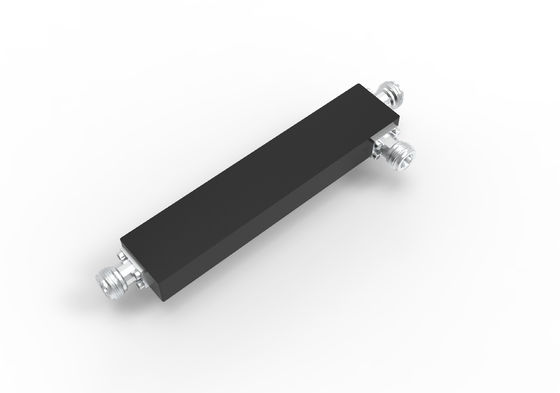

350-520 MHz N Female Directional Coupler VSWR 1.2 PIM -150/-155/-161/-165 Directional Coupler For IBS DAS And BTS
Part Number | VN-DC-035052-INx | |||||
Operating Frequency ( MHz ) | 350-520 | |||||
Impedance ( Ohm ) | 50 | |||||
VSWR | ≤1.2 | |||||
Coupling (dB) | 5 | 6 | 10 | 15 | 20 | 30 |
Tolerance (dB) | ± 0.8 | ± 0.8 | ± 1.0 | ± 1.0 | ± 1.0 | ± 1.2 |
Insertion Loss (dB) | ≤2.0 | ≤1.6 | ≤0.7 | ≤0.3 | ≤0.1 | ≤0.04 |
Isolation (dB) | ≥25 | ≥26 | ≥30 | ≥35 | ≥40 | ≥50 |
IM3 (dBc @ 2×43dBm) | -150/-155/-161/-165 | |||||
Application | Indoor | |||||
Degree of Protection | IP65 | |||||
Operating Temperature ( ℃ ) | -40 ~ + 80 | |||||
Interface | N Female | |||||
Handling Power (Watt, max) | 300 | |||||
Peak Power (Watt, max) | 1200 | |||||
Dimension (mm)(L×W×H, excl connector) | 151 × 31× 17 | |||||
ROHS Compliance | Yes |
Rf passive devices are mainly used in base station construction of wireless communication system and indoor power distribution system. Especially in the building of wireless signal distribution and coverage of a wide range of applications, a variety of. Rf passive devices are used to connect or distribute RF signals in base station construction and indoor power distribution projects. Indoor power distribution system is to connect or branch the signals sent by the base station through rf passive equipment, and then distribute them to each coverage point of the antenna through the feeder, so as to achieve good coverage of c indoor wireless signals.
