550-2700MHz 2in 2out 4.3-10F Hybrid Coupler

Name: 550-2700MHz 2in 2out 4.3-10F Hybrid Coupler
Brand: Vinncom
SKU: VN-HC2x2-05527-OP
Rating: 4.7 (170 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-05527-OP

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    4.3 Female Stripline Directional Coupler, 500w Stripline Directional Coupler, 2In 2Out 180 hybrid coupler


Application:	As Same Band Combiner	Hight Isolation:	Typically 25db ,30(max)
LOW VSWR:	1.15(max)	Connector:	4.3-10 Female
OEM/ODM:	Acceptable	Color:	Customized

Application:	As Same Band Combiner
Hight Isolation:	Typically 25db ,30(max)
LOW VSWR:	1.15(max)
Connector:	4.3-10 Female
OEM/ODM:	Acceptable
Color:	Customized

Description

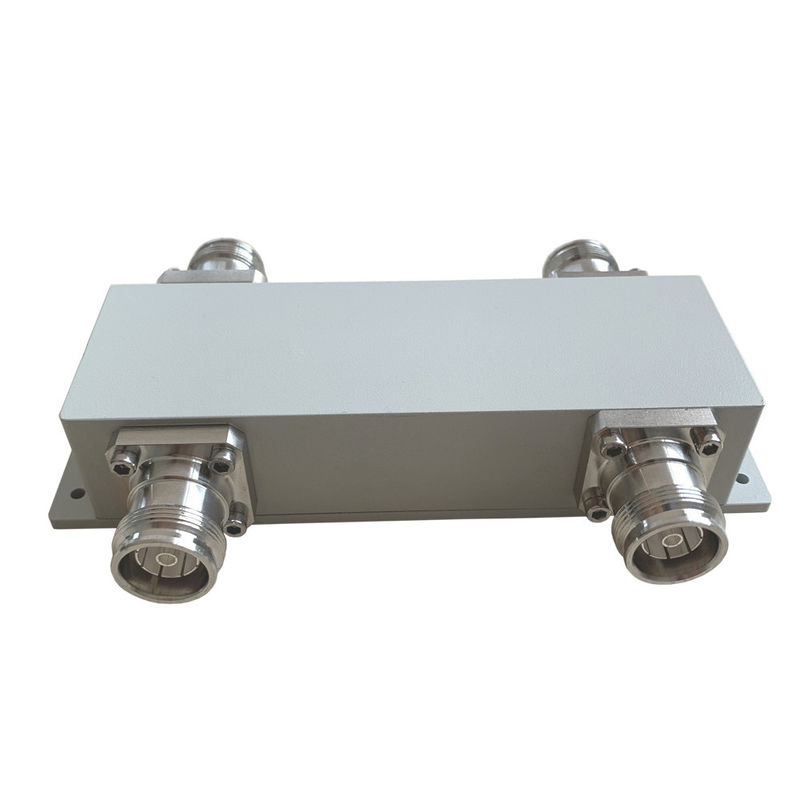

550-2700MHz 2in 2out 4.3-10F Hybrid Coupler

550-2700MHz 2in 2out 4.3-10F Hybrid Coupler

Good PIM up to -163@43dBm*2
Good returen loss
High isolation

VN-HC2x2-05527-OP-xxx.pdf

Part Number	VN-HC2x2-05527-OP
Operating Frequency ( MHz )	550-2700
Impedance ( Ohm )	50
VSWR	1.25
Coupling (dB)	3
Insertion Loss (dB)	±0.7
Isolation (dB)	25
IM3 (dBc @ 2×43dBm)	-153/-163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500
Dimension (mm)(L×W×H, excl connector)	135.6X45X32
Net Weight (g)	670
Packing Weight (kg/pcs)	14.5/20
Packing Dimensions (mm,L×W×H)	170X100X40
Packing Carton Size (mm,L×W×H)	520X360X105
ROHS Compliance	Yes

Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
