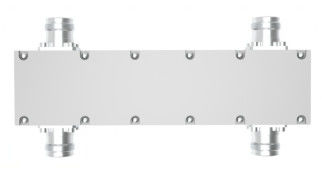

350-6000MHz 2in 2out N Female Hybrid Coupler
  • name

350-6000MHz 2in 2out N Female Hybrid Coupler

MOQ: 5 pcs
Price: negotiable
Payment Method: L/C, D/A, D/P, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ISO 9000 ROHS
Model Number
VN-HC2x2-03560-ON
Color:
Gray
Connector Type:
N Female
Frequency Range:
350-6000
Impedance:
50Ω
Insertion Loss:
3±2 DB
Isolation:
≥20dB
Operating Temperature:
-40℃~+80℃
Power Handling:
200W
Product Name:
RF Antenna Combiner
Size:
176.5X105X50mm
VSWR:
≤1.35
Highlight:

N Female Hybrid Coupler

,

Signal Distribution Hybrid Coupler

,

350MHz Hybrid Coupler

Product Description

350-6000MHz 2in 2out N Female Hybrid Coupler



  • Good VSWR
  • High isolation
  • Wide band frequency



                                                              ​   VN-HC2x2-03560-ON-xxx.pdf

Part Number VN-HC2x2-03560-ON-xxx
Operating Frequency ( MHz ) 350-6000
Impedance ( Ohm ) 50
VSWR 1.35
Coupling (dB) 3
Insertion Loss (dB) ±2
Isolation (dB) 20
IM3 (dBc @ 2×43dBm)@xxx -150/-160/-163/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 200
Peak Power (Watt, max) 1200
   Dimension (mm)(L×W×H, excl connector)    176.5X46X42
Net Weight (g) 780
ROHS Compliance Yes
Packing Dimensions (mm,L×W×H) 250X105X50
Packing Carton Size (mm,L×W×H) 565X260X120









Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS,

N Female Hybrid Coupler
