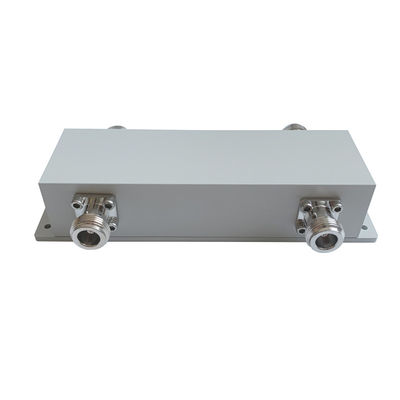

550-3800MHZ 300 Watt Quadrature Hybrid Coupler
  • name
  • name
  • name
  • name

550-3800MHZ 300 Watt Quadrature Hybrid Coupler

MOQ: 5pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC2x2-05538-ON
Application:
As Same Band Combiner
Hight Isolation:
Typically 25db
LOW VSWR:
1.15(max)
Connector:
N Female
OEM/ODM:
Acceptable
Color:
Customized
PIM:
-153dbc -163dbc @43dbm*2
Highlight:

3800MHZ quadrature hybrid coupler

,

300Watt quadrature hybrid coupler

,

550MHZ wideband hybrid coupler

Product Description

550-3800MHZ N Female Low PIM 3dB Hybrid Coupler Combiner DAS



  • High isolation
  • Portable for installation
  • Low PIM -163dBc@43dBm*2





Part Number VN-HC2x2-05538-ON
Operating Frequency ( MHz ) 550-3800
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3±1
Insertion Loss (dB) 3±1
Isolation (dB) 23
IM3 (dBc @ 2×43dBm) -153/-163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 140.6*44*34.5
Net Weight (g) 590
Packing Weight (kg/pcs) 12.9/20
Packing Dimensions (mm,L×W×H) 170*100*40
Packing Carton Size (mm,L×W×H) 520*360*105
ROHS Compliance Yes



550-3800MHZ 300 Watt Quadrature Hybrid Coupler 0



Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
