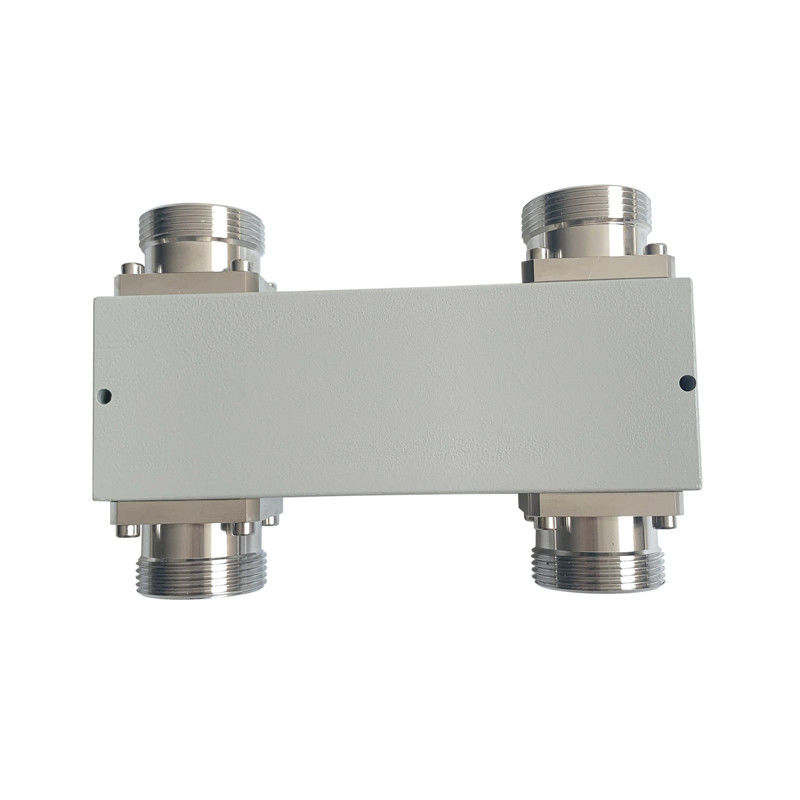

698-2700MHz 2in 2out DIN Female Hybrid Coupler
  • name
  • name
  • name
  • name

698-2700MHz 2in 2out DIN Female Hybrid Coupler

MOQ: 5pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC2x2-0727-OD
Application:
As Same Band Combiner
Hight Isolation:
Typically 25db ,30(max)
LOW VSWR:
1.15(max)
Connector:
DIN Female
OEM/ODM:
Acceptable
Color:
Customized
PIM:
153dbc 163dbc@43dbm*2
Highlight:

VSWR1.20 broadband hybrid coupler

,

2700MHZ broadband hybrid coupler

,

4 Port Directional Coupler

Product Description

698-2700MHZ DIN Female Low PIM -160dbc 3dB Hybrid Coupler Combiner DAS



  • High isolation
  • Portable for installation
  • Wide band

​

                                                                                                                                                       VN-HC2x2-0727-OD-xxx.pdf

Part Number VN-HC2x2-0727-OD
Operating Frequency ( MHz ) 698-2700
Impedance ( Ohm ) 50
VSWR ≤1.20
Coupling (dB) 3.0±0.8
Insertion Loss (dB) 3.6
Isolation (dB) ≥25
IM3 (dBc @ 2×43dBm) -140 / -150 / -155 / -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector) 127 × 44 × 38
Net Weight (g) 810 ± 20
Packing Weight (kg/pcs) 17.7 / 20
Packing Dimensions (mm,L×W×H) 170 × 100 × 40
Packing Carton Size (mm,L×W×H) 520 × 360 × 110
ROHS Compliance Yes



698-2700MHz 2in 2out DIN Female Hybrid Coupler 0



Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.



Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS,

VSWR1.20 broadband hybrid coupler
