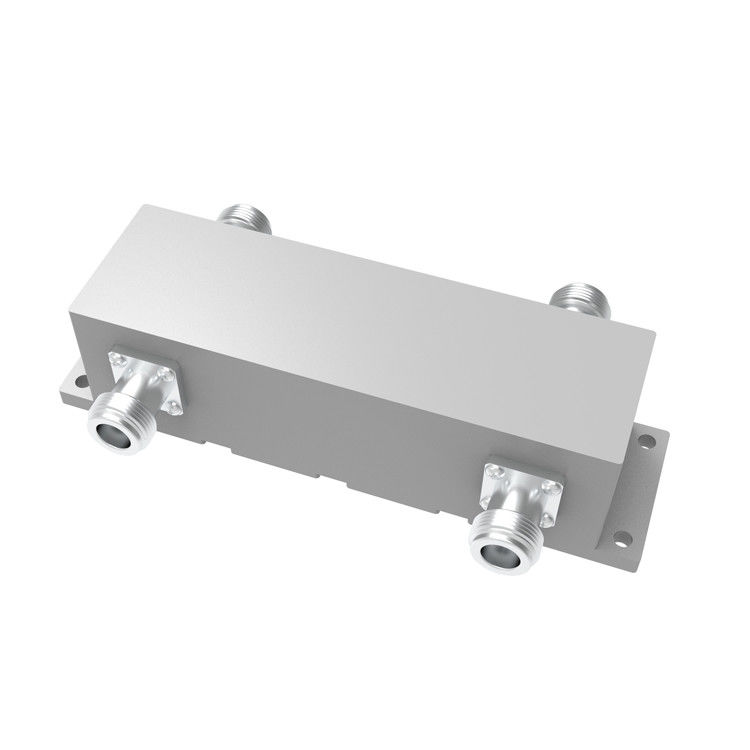

600-6000MHz 2in 2out N Female Hybrid Coupler

Name: 600-6000MHz 2in 2out N Female Hybrid Coupler
Brand: Vinncom
SKU: VN-HC2x2-0660-ON
Rating: 4.8 (108 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-HC2x2-0660-ON

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            6000MHZ  rf hybrid coupler, n Female rf hybrid coupler, Hybrid n type coupler


Application:	As Same Band Combiner	Hight Isolation:	24db
LOW VSWR:	1.25(max)	Connector:	N Female
OEM/ODM:	Acceptable	Color:	Customized
PIM:	-161~163dbc@43dbm*2

Application:	As Same Band Combiner
Hight Isolation:	24db
LOW VSWR:	1.25(max)
Connector:	N Female
OEM/ODM:	Acceptable
Color:	Customized
PIM:	-161~163dbc@43dbm*2

Description

600-6000MHz 2in 2out N Female Hybrid Coupler

600-6000MHZ N Female Low PIM -161dbc 3dB Hybrid Coupler Combiner DAS

Wide band
Low PIM -163dBc@43dBm*2
Portable for installation

VN-HC2x2-05560-ON-xxx.pdf

Part Number	VN-HC2x2-0660-ON
Operating Frequency ( MHz )	600-6000
Impedance ( Ohm )	50
VSWR	1.35
Coupling (dB)	3
Insertion Loss (dB)	±1.4
Isolation (dB)	20
IM3 (dBc @ 2×43dBm)	-153/-161
Application	Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200
Dimension (mm)(L×W×H, excl connector)	131X40X38.4
Net Weight (g)	600± 5%
Packing Dimensions (mm,L×W×H)	170X100X40
Packing Carton Size (mm,L×W×H)	520X360X105
ROHS Compliance	Yes

Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
