600-4000MHz 2in 2out 4.3-10F Hybrid Coupler
  • name
  • name
  • name

600-4000MHz 2in 2out 4.3-10F Hybrid Coupler

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-HC2x2-0640-OP
Application:
As Same Band Combiner
Hight Isolation:
24db
LOW VSWR:
1.25(max)
Connector:
4.3-10 Female
OEM/ODM:
Acceptable
Color:
Customized
PIM:
-153dbc -163dbc @43dbm*2
Highlight:

4.3-10 Female 3dB Hybrid Coupler

,

4000MHZ 3dB Hybrid Coupler

,

600MHZ broadband hybrid coupler

Product Description

600-4000MHZ 4.3-10 Female Low PIM 3dB Hybrid Coupler Combiner DAS



  • Portable for installation
  • High isolation
  • Good PIM up to -163@43dBm*2



  VN-HC2x2-0642-OP-xxx.pdf

Part Number VN-HC2x2-0640-OP
Operating Frequency ( MHz ) 600-4000
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3±1
Insertion Loss (dB) 3±1
Isolation (dB) 23
IM3 (dBc @ 2×43dBm) -153/-163
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 500
Peak Power (Watt, max) 1500
Dimension (mm)(L×W×H, excl connector)

140.6*44*36.5
Net Weight (g)

715± 5%
Packing Weight (kg/pcs) 15.4/20
Packing Dimensions (mm,L×W×H) 170*100*40
Packing Carton Size (mm,L×W×H) 520*360*105
ROHS Compliance Yes

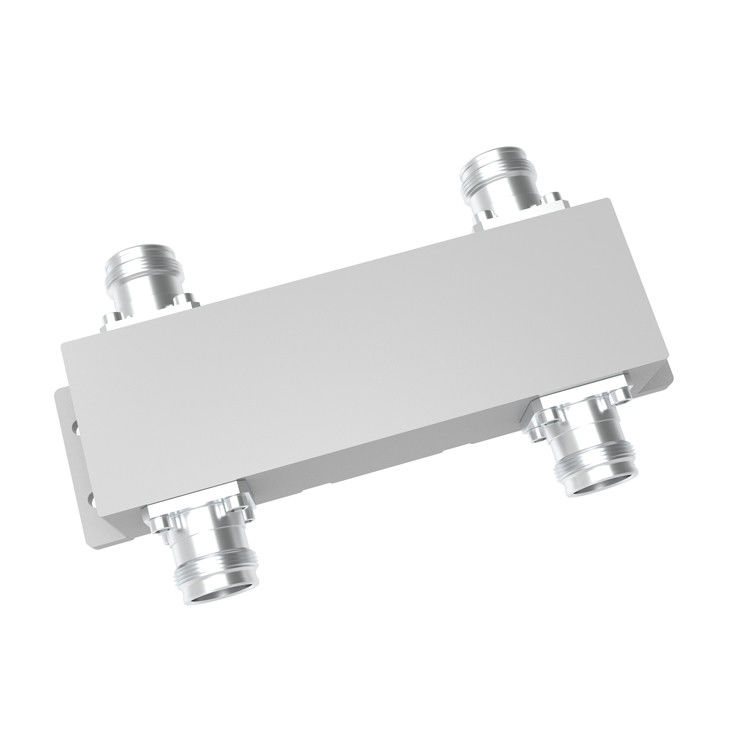

600-4000MHz 2in 2out 4.3-10F Hybrid Coupler 0600-4000MHz 2in 2out 4.3-10F Hybrid Coupler 1



Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.

Tags:

2700MHz RF Hybrid Coupler,

Hybrid Coupler For DAS IBS,

4.3-10 Female 3dB Hybrid Coupler
