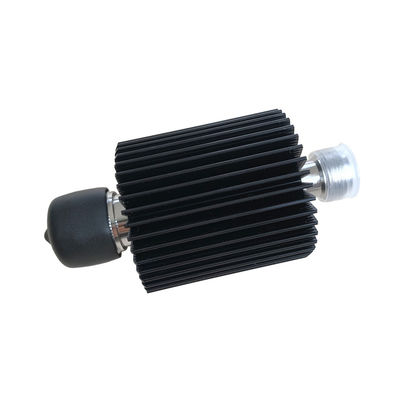

DC-4G 10W N Male-N Female 3~30dB Attenuator

Name: DC-4G 10W N Male-N Female 3~30dB Attenuator
Brand: Vinncom
SKU: VN-AT-4G-10W-ONX
Rating: 4.7 (102 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-AT-4G-10W-ONX

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 300pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                            3dB Variable Rf Attenuator, N Female Variable Rf Attenuator, 10 Watts pasternack attenuator


Connector:	N Male - N Female	Frequency:	DC-3.8GHz DC-4GHz
Design:	Integrated Design

Connector:	N Male - N Female
Frequency:	DC-3.8GHz DC-4GHz
Design:	Integrated Design

Description

DC-4G 10W N Male-N Female 3~30dB Attenuator

DC-3.8GHz 10 Watts N Male-N Female 3~30dB RF Coaxial Attenuators

Good VSWR
Attenuation Range Wide
High-gain

VN-AT-4G-10W-ONx.pdf

Part Number	VN-AT-3.8G-10W-ONX
Operating Frequency ( MHz )	DC-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	10
Interface	N Male - N Female
Operating Temperature ( ℃ )	-40 ~ + 80
Attenuation(dB)	3	5	6	10	15	20	30
Attenuation Tolerance(dB)	±0.5	±0.5	±0.6	±0.8	±1	±1.5	±1.8
Dimension (mm)(L×W×H, excl connector)	50×Φ47
Net Weight (g)	210± 20
Packing Dimensions (mm,L×W×H)	105 × 65 ×65
Packing Carton Size (mm,L×W×H)	350 × 350 × 225
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
