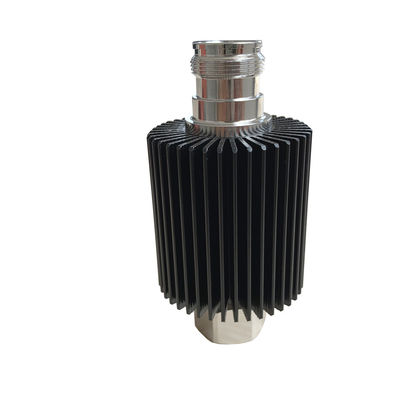

DC-3.8GHz 4.3-10 Male 30dB RF Coaxial Attenuators
  • name
  • name
  • name
  • name

DC-3.8GHz 4.3-10 Male 30dB RF Coaxial Attenuators

MOQ: 5 PCS
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 300pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-AT-3.8G-10W-OPX
Connector:
4.3-10 Male - 4.3-10 Female
Frequency:
DC-3.8GHz DC-4GHz
Design:
Integrated Design
Highlight:

30dB RF Coaxial Attenuators

,

4.3-10 Male RF Coaxial Attenuators

,

DC-3.8GHz n type attenuator

Product Description

DC-3.8GHz 10 Watts 4.3-10 Male-4.3-10 Female 3~30dB RF Coaxial Attenuators



  • Low standing wave
  • High attenuation accuracy
  • High indicator stability



Part Number VN-AT-3.8G-10W-OPX
Operating Frequency ( MHz ) DC-3800
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 10
Interface 4.3-10 Male – 4.3-10 Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3 5 6 10 15 20 30
Attenuation Tolerance(dB) ±0.5 ±0.5 ±0.6 ±0.8 ±1 ±1.5 ±1.8
Dimension (mm)(L×W×H, excl connector) 50×Φ47
Net Weight (g) 235± 20
Packing Dimensions (mm,L×W×H) 105 × 65 ×65
Packing Carton Size (mm,L×W×H) 350 × 350 × 225
ROHS Compliance Yes
Revision R1



DC-3.8GHz 4.3-10 Male 30dB RF Coaxial Attenuators 0



RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
