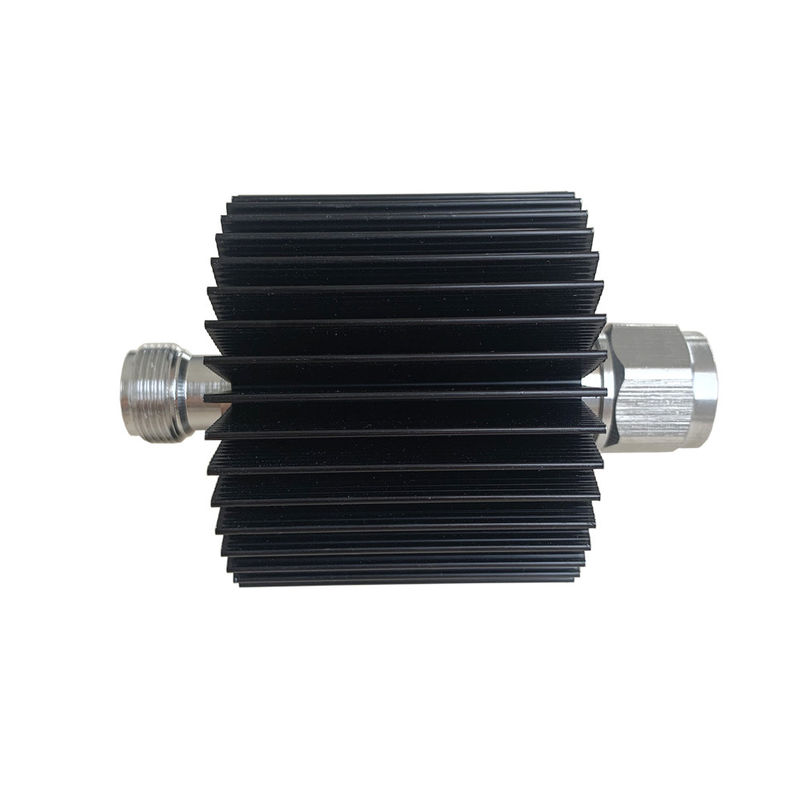

30 Watts N Male High Power Rf Attenuator

MOQ:	5 PCS
Price:	Negotiable
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	300pcs per day

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Vinncom

Certification

ROHS ISO9000

Model Number

VN-AT-3.8G-30W-ONx

Connector:

N Male - N Female

Frequency:

DC-3.8GHz DC-4GHz

Design:

Integrated Design

Highlight:

30Watts fixed rf attenuator

N Male fixed rf attenuator

High Power Rf Attenuator

Product Description

DC-3.8GHz 30 Watts N Male-N Female 3~30dB RF Coaxial Attenuators

Wide working frequency range
Low standing wave
High indicator stability

Part Number	VN-AT-3.8G-30W-ONX
Operating Frequency ( MHz )	DC-3800
Impedance ( Ohm )	50
VSWR	≤1.25
Application	Indoor & Outdoor
Degree of Protection	IP65
Handling Power (Watt, max)	30
Interface	N Male - N Female
Operating Temperature ( ℃ )	-40 ~ + 80
Attenuation(dB)	3	5	6	10	15	20	30
Attenuation Tolerance(dB)	±0.5	±0.5	±0.6	±0.8	±1	±1.5	±1.8
Dimension (mm)(L×W×H, excl connector)	50×Φ60
Net Weight (g)	250± 20
Packing Dimensions (mm,L×W×H)	105 × 65 ×65
Packing Carton Size (mm,L×W×H)	350 × 350 × 225
ROHS Compliance	Yes

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
