Product Details
Place of Origin: CHINA
Brand Name: Vinncom
Certification: ROHS ISO9000
Model Number: VN-AT-4G-50W-PF-PM
Payment & Shipping Terms
Minimum Order Quantity: 5 PCS
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 300pcs per day
Connector: |
4.3-10 Male - 4.3-10 Female |
Frequency: |
DC-3.8GHz DC-4GHz |
Design: |
Integrated Design |
Connector: |
4.3-10 Male - 4.3-10 Female |
Frequency: |
DC-3.8GHz DC-4GHz |
Design: |
Integrated Design |

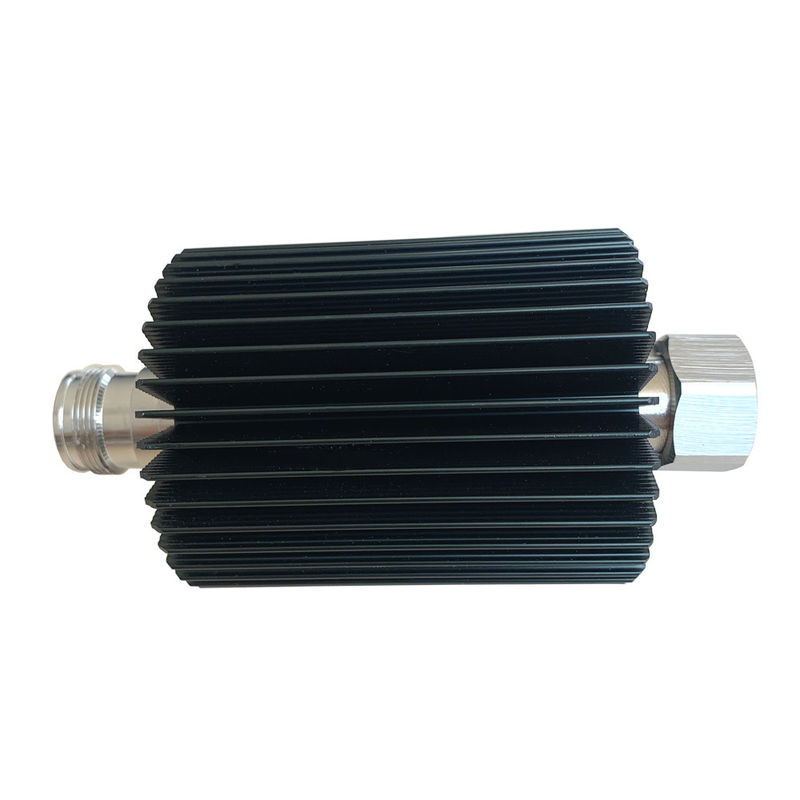

DC-4GHz 4.3-10 Female -4.3-10 Male 50W Attenuator
Part Number |
VN-AT-4G-50W-PF-PM
|
||||||
Operating Frequency ( MHz ) | DC-3800 | ||||||
Impedance ( Ohm ) | 50 | ||||||
VSWR | ≤1.25 | ||||||
Application | Indoor & Outdoor | ||||||
Degree of Protection | IP65 | ||||||
Handling Power (Watt, max) | 50 | ||||||
Interface | 4.3-10 Male – 4.3-10 Female | ||||||
Operating Temperature ( ℃ ) | -40 ~ + 80 | ||||||
Attenuation(dB) | 3 | 5 | 6 | 10 | 15 | 20 | 30 |
Attenuation Tolerance(dB) | ±0.5 | ±0.5 | ±0.6 | ±0.8 | ±1 | ±1.5 | ±1.8 |
Dimension (mm)(L×W×H, excl connector) | 75×Φ60 | ||||||
Net Weight (g) | 360± 20 | ||||||
Packing Dimensions (mm,L×W×H) | 170 × 70 ×70 | ||||||
Packing Carton Size (mm,L×W×H) | 370 × 370 × 180 | ||||||
ROHS Compliance | Yes |
RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.
Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
